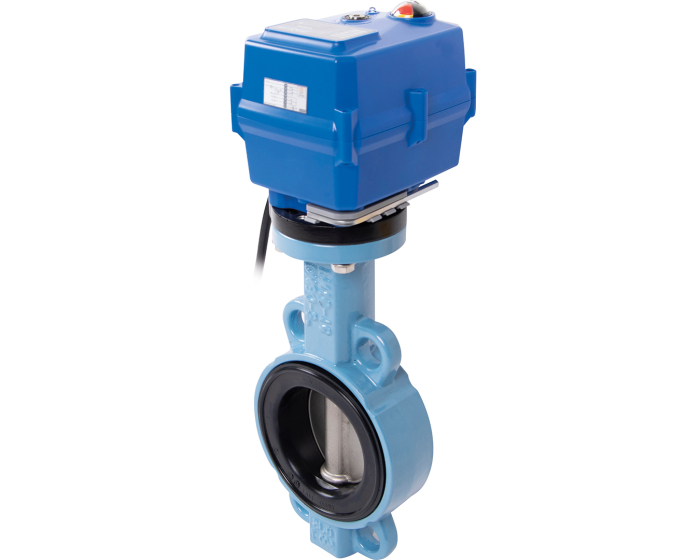

Butterfly valve 1150LT10 + TCR-NKT electric actuator capacitor return
The 1150 LT10 butterfly valve has a ductile iron body, a stainless steel or ductile iron disc and an EPDM seat. It is actuated by a TCR-N-KT32 electric actuator. ACS approval.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | TCR-05N-KT32 |
| Electric actuator series | TCR Series |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Positive safety type | Super capacitor |
| Butterfly valve design | Concentric |
| Wafer/lug | WAFER |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ductile iron butterfly valve 1150LT10 DN40 + TCR05N-KT32 230V AC | 260303024320L10 | €1,003.82 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN40 + TCR05N-KT32 24V AC/DC | 260303024321L10 | €1,003.82 |
10 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN50 + TCR05NKT32 230V AC | 260304024320L10 | €1,012.82 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN50 + TCR05NKT32 24V AC | 260304024321L10 | €1,012.82 |
10 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN65 + TCR05NKT32 230V AC | 260305024320L10 | €1,044.20 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN65 + TCR05NKT32 24V AC | 260305024321L10 | €1,044.20 |
10 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN80 + TCR05TNKT32 230V AC | 260306024320L10 | €1,064.75 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN80 + TCR05NKT32 24V AC | 260306024321L10 | €1,064.75 |
10 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN100 + TCR05NKT32 230V AC | 260307024320L10 | €1,096.02 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN100 + TCR05NKT32 24V AC | 260307024321L10 | €1,096.02 |
10 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN125 + TCR11NKT32 230V AC | 260308024620L10 | €1,455.85 |
Currently not in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN125 + TCR11NKT32 24V AC | 260308024621L10 | €1,455.85 |
Currently not in stock
|
