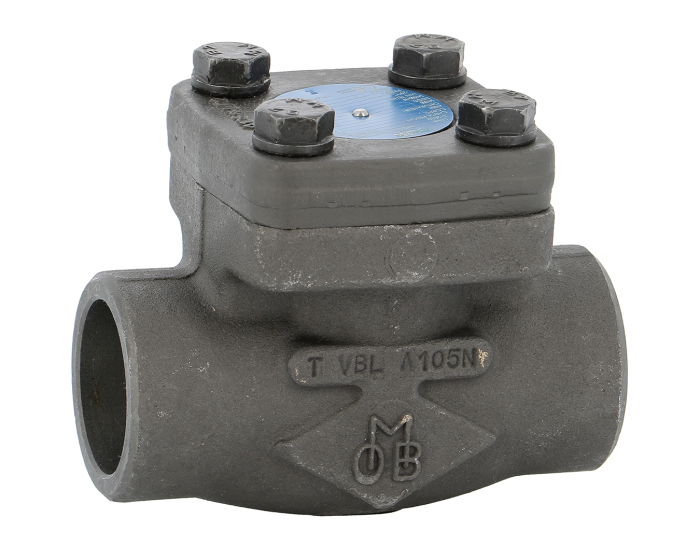

Carbon steel A105N ball check valve 318 TRIM 8 800 lbs SW
The 318 series ball check valve with SW weld spring, in forged steel TRIM 8, class 800, standard passage, for the oil, steam and high pressure industries.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/3/1/318-clapet-bille-acier-800lbs-trim8-sw.jpg)
Documentation
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 8 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Steam | Yes |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
ATEX compatible | Yes |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Oxygen / Argon / Nitrogen |
Kv (m³/h) | 0.9 |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
PS (bar) | 136 |
Connections | Welding SW |
Seats | Stainless steel ASTM A276 Tp 410 stellite |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Main product colour | Black |
Plug material | Stainless steel ASTM A276 AISI 410 |
