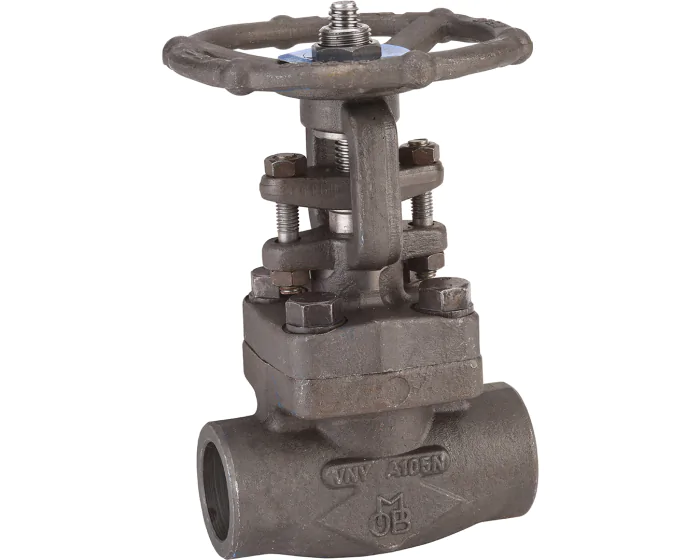

Carbon steel A105N gate valve 112 TRIM8 800 lbs SW

Discover the Sferaco 112 series gate valve, in forged steel, Class800, 1/2 stellite, TRIM 8, with bolted bonnet, standard bore for steam, high pressure and oil
Choose your configuration
See all configurations
Réf.
CONF112015
(Indicative price) €106.43
Details
Details
Option certificate 3.1 Yes
DN inches NPS 1/2''
Bonnet material Carbon steel ASTM A105N
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 8
Brand OMB
Tightness test standard API 598
Bonnet Bolted
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Diameter of passage 9.60
Face to Face (mm) 80.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 4.8
Body material Carbon steel ASTM A105 N
Gate material Stainless steel ASTM A182 F6
Bore Standard
Packing gland Yes
PS (bar) 136
Connections Welding SW
Seats Stainless steel ASTM A276 Tp 410 stellite
TS max (°C) 425
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Black
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 3/8'' 112010 €106.42
24 pcs available in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 1/2'' 112015 €117.05
489 pcs available in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 3/4'' 112020 €129.62
Currently not in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 1'' 112025 €168.88
451 pcs available in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 1''1/4 112032 €232.58
231 pcs available in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 1''1/2 112040 €301.00
739 pcs available in stock
Carbon steel A105N gate valve 112 TRIM 8 800 lbs SW 2'' 112050 €409.70
21 pcs available in stock
