Documentation
Certificate of Conformity
pdf - 194.7 ko
Notice montage robinet vanne à opercule forgée
pdf - 2.7 mo
Installation operating manual forged valve
pdf - 2.7 mo
Spare parts
Details
Option certificate 3.1 | Yes |
---|---|
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 8 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 410 |
ATEX compatible | Yes |
DN | 15 |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 4.8 |
Body material | Carbon steel ASTM A105 N |
Gate material | Stainless steel ASTM A182 F6 |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 136 |
Connections | BSP FF |
Seats | Stainless steel ASTM A276 Tp 410 stellite |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Handle material | Carbon steel |

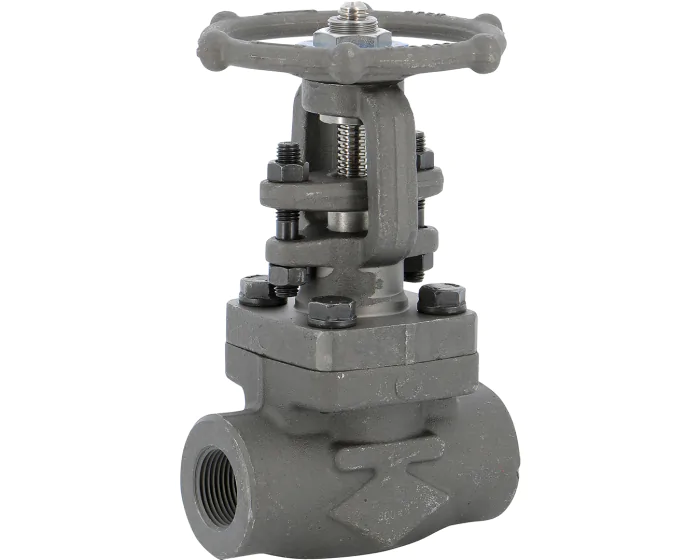

Carbon steel A105N gate valve 114 TRIM8 800 lbs BSP
The 114 series gate valve, forged steel, Class800, 1/2 stellite, TRIM 8, F/F BSP, with bolted bonnet, standard bore for steam, high pressure and oil.
