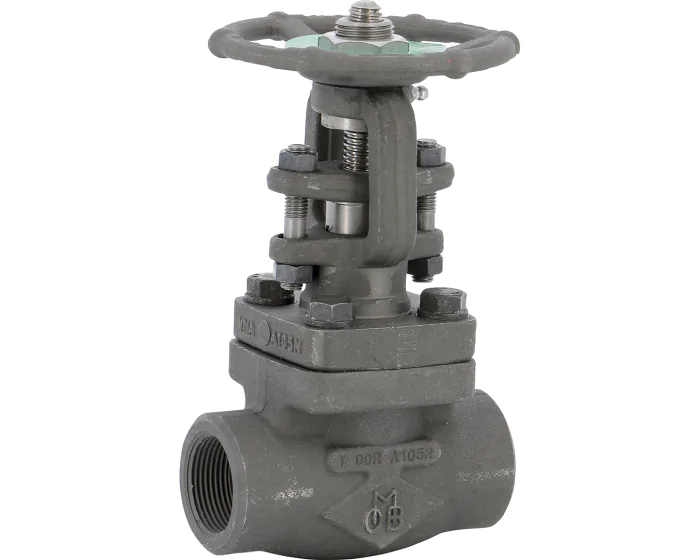

Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP

The 404 series globe valve, bellowed steel A105N, BSP female/female fitting, standard bore, Class 600, TRIM 8, ATEX compatible for oil, chemical, petrochemical and steam applications.
Choose your configuration
See all configurations
Réf.
CONF404004
(Indicative price) €302.98
Details
Details
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A105N
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 8
Brand OMB
Tightness test standard API 598
Bonnet Bolted
Stem sealing material Graphite
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Diameter of passage 9.00
DN 15
Face to Face (mm) 80.0
Sealing Metal / Metal
Fluid Steam
Kv (m³/h) 1.3
Body material Carbon steel ASTM A105 N
Bore Standard
Packing gland Yes
PS (bar) 100
Connections BSP FF
Seats Stellite Gr.6
TS max (°C) 425
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Bellow Stainless steel ASTM A479 type 321
Type of stem Rising
CE Yes
Main product colour Black
Plug material Stainless steel ASTM A276 AISI 410
Handle material Carbon steel

Configurations

Product Reference Price Stock
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 1/2''
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 3/4''
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 1''
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 1''1/4
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 1''1/2
Produit
Carbon steel A105N globe valve 404 TRIM 8 600 lbs BSP 2''

6 Item(s)
