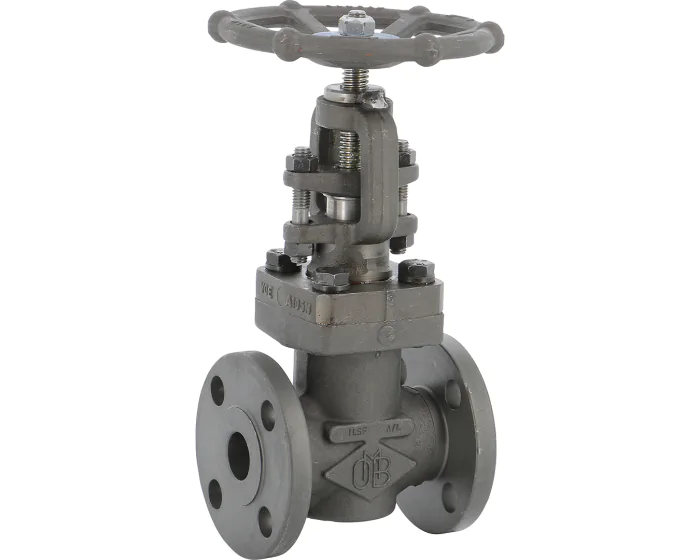

Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF

Discover the 440 series globe valve from Sferaco's forged steel range, A105N, flanged Class 150 RF, PN20, with bolted bonnet, stellited plug, stainless steel rising stem, standard bore for petroleum, chemical
Choose your configuration
See all configurations
Réf.
CONF440050SF
(Indicative price) €289.90
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A105N
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 5
EN face-to-face standard EN 558 Series 10
ASME face-to-face standard ASME B16.10
Brand OMB
Tightness test standard API 598
Bonnet Bolted
Stem sealing material Stainless steel AISI316 + spiral graphite
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Torque (Nm) 106.4
Diameter of passage 50.00
Face to Face (mm) 203.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 34.2
Body material Carbon steel ASTM A105 N
Bore Full
Packing gland Yes
PS (bar) 20
Connections Flanged #150 PN20
Seats Stainless steel ASTM A276 TP10 C/2 stellite
TS max (°C) 425
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Black
Plug material Stainless steel ASTM A182 F6 Stellited
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF 1/2'' 440015 €289.90
18 pcs available in stock
Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF 3/4'' 440020 €342.60
42 pcs available in stock
Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF 1'' 440025 €479.82
36 pcs available in stock
Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF 1''1/2 440040SF €831.35
22 pcs available in stock
Carbon steel A105N globe valve 440 TRIM 5 150 lbs RF 2'' 440050SF €1,290.02
25 pcs available in stock
