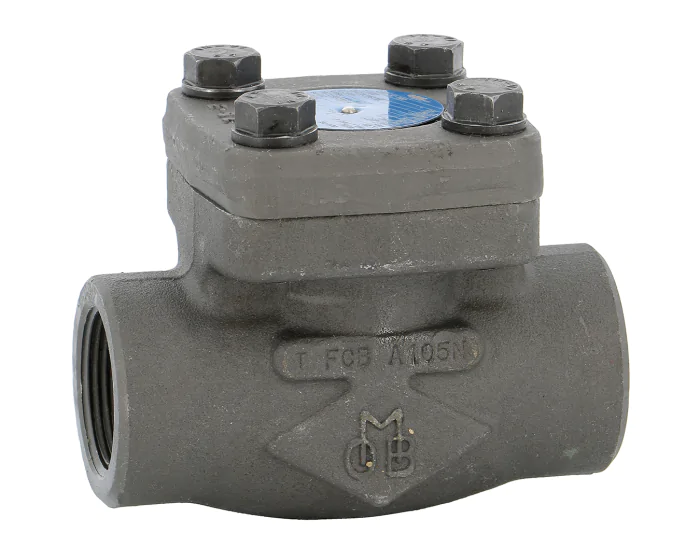

Carbon steel A105N piston check valve 313 TRIM8 800 lbs NPT
The check valve series 313, piston type with NPT threaded spring, made of forged steel TRIM 8, class 800, 1/2 stellite, phosphate coated surface, for oil, steam and high pressure industries.
Documentation
Certificate of Conformity
pdf - 195.4 ko
Notice montage robinet vanne à opercule forgée
pdf - 2.7 mo
Installation operating manual forged valve
pdf - 2.7 mo
Details
Option certificate 3.1 | Yes |
---|---|
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 8 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Steam | Yes |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
ATEX compatible | Yes |
DN | 15 |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Oxygen / Argon / Nitrogen |
Kv (m³/h) | 0.9 |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
PS (bar) | 136 |
Connections | NPT FF |
Seats | Stainless steel ASTM A276 Tp 410 stellite |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Main product colour | Black |
Plug material | Stainless steel ASTM A276 AISI 410 |
