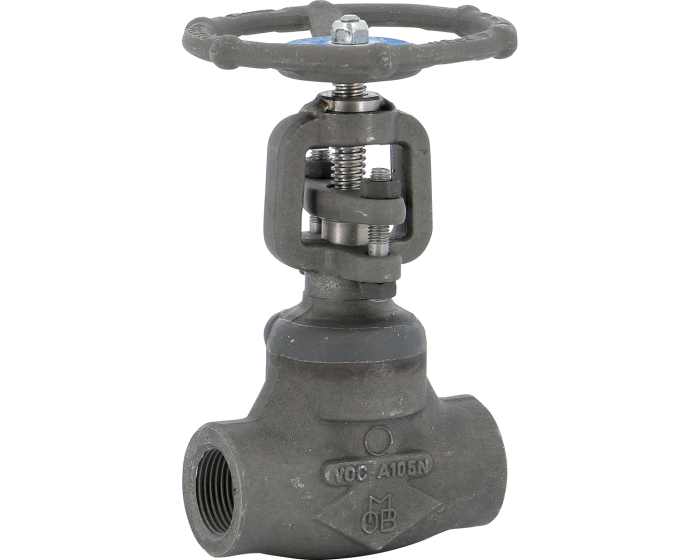

Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT

Discover the 416 series globe valve from the Sferaco forged valve range, with welded steel bonnet, forged steel body A105N, F/F NPT, Class 800, Trim 5, standard bore for petrochemicals, oil and steam
Choose your configuration
See all configurations
Réf.
CONF416004
(Indicative price) €166.50
Details
Details
Option certificate 3.1 Yes
DN inches NPS 1/2''
Bonnet material Carbon steel ASTM A105N
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 5
Brand OMB
Tightness test standard API 598
Bonnet Welded
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Diameter of passage 9.00
DN 15
Face to Face (mm) 80.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 1.3
Body material Carbon steel ASTM A105 N
Bore Standard
Packing gland Yes
PS (bar) 136
Connections NPT FF
Seats Stellite Gr.6
TS max (°C) 425
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Black
Plug material Stainless steel ASTM A182 F6a Stellited
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT 1/2'' 416004 €166.50
8 pcs available in stock
Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT 3/4'' 416005 €185.45
4 pcs available in stock
Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT 1'' 416006SF €275.95
6 pcs available in stock
Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT 1''1/2 416008 €553.32
13 pcs available in stock
Carbon steel A150N globe valve 416 TRIM 5 800 lbs NPT 2'' 416009 €665.82
15 pcs available in stock
