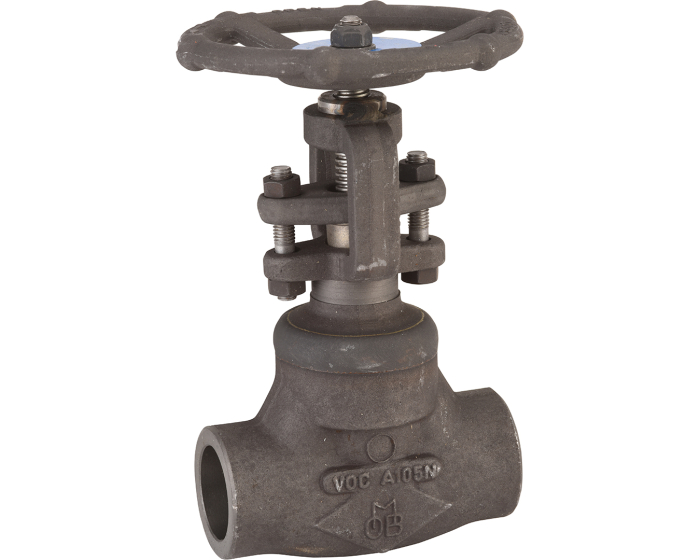

Carbon steel A150N globe valve 417 TRIM 5 800 lbs SW
The 417 series globe valve , with welded steel bonnet, forged steel body A105N, welding SW, Class 800, Trim 5, standard bore for petrochemical, oil and steam.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/4/1/417-robinet-soupape-acier-800lbs-trim5-sw.jpg)
Documentation
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 5 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Welded |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 410 |
ATEX compatible | Yes |
Diameter of passage | 9.00 |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Oxygen / Argon / Nitrogen |
Kv (m³/h) | 1.3 |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 136 |
Connections | Welding SW |
Seats | Stellite Gr.6 |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Plug material | Stainless steel ASTM A182 F6a Stellited |
Handle material | Carbon steel |
