Carbon steel A150N globe valve 441 TRIM 5 300 lbs RF
The globe valve series 441 in forged steel A105N, flanged Class 300 RF, TRIM 5, standard bore with bolted bonnet for oil, chemical, steam and petrochemical applications.

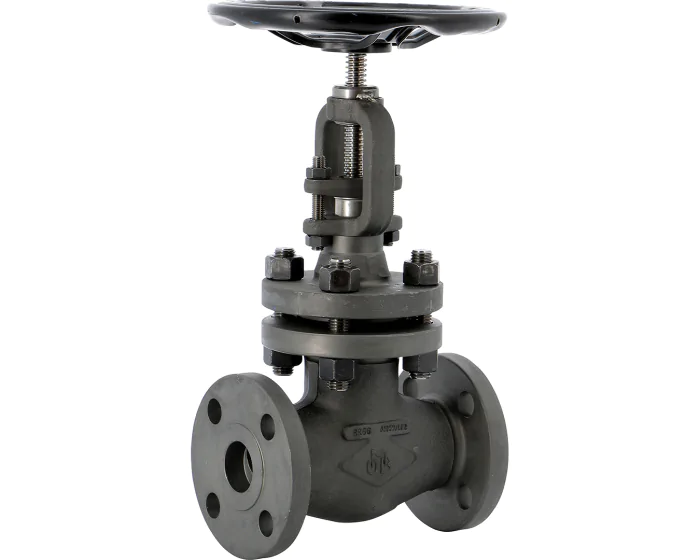

![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/4/4/441-robinet-soupape-acier-class300-trim5-brides.jpg)
Documentation
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 5 |
ASME face-to-face standard | ASME B16.10 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Stem sealing material | Stainless steel AISI316 + spiral graphite |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 410 |
ATEX compatible | Yes |
Face to Face (mm) | 267.0 |
Sealing | Metal / Metal |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 21.6 |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 50 |
Connections | Flanged #300 PN50 |
Seats | Stainless steel ASTM A276 TP10 C/2 stellite |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Plug material | Stainless steel ASTM A182 F6 Stellited |
Handle material | Carbon steel |
