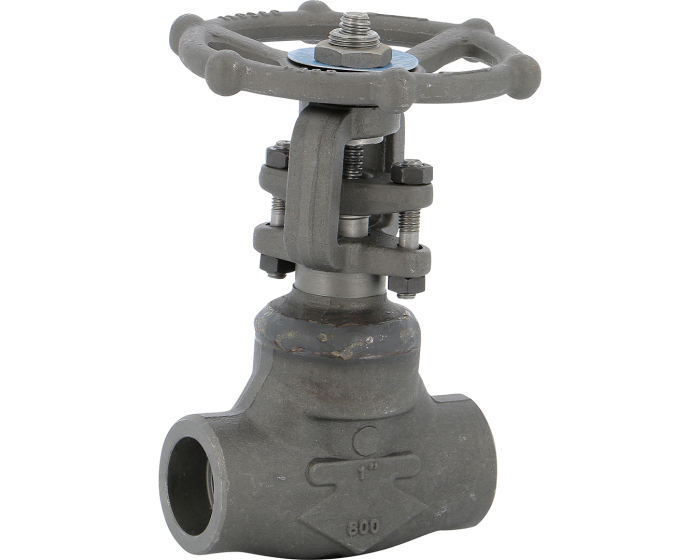

Carbon steel A182F11 gate valve 122 TRIM 5 800 lbs SW
The gate valve in forged steel A82 F11, Class 800, TRIM 5, welding SW, with welded bonnet, standard bore, non-rotating rising stem for oil, steam and high pressure industries.
Documentation
Certificate of Conformity
pdf - 195.2 ko
Notice montage robinet vanne à opercule forgée
pdf - 2.7 mo
Installation operating manual forged valve
pdf - 2.7 mo
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A182 F11 |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 5 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Welded |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 410 |
ATEX compatible | Yes |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Oxygen / Argon / Nitrogen |
Kv (m³/h) | 4.8 |
Body material | Carbon steel ASTM A182 F11 |
Gate material | Stainless steel ASTM A182 F6a stellited |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 138 |
Connections | Welding SW |
Seats | Stainless steel ASTM A276 Tp 410 stellite |
TS max (°C) | 540 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Handle material | Carbon steel |
