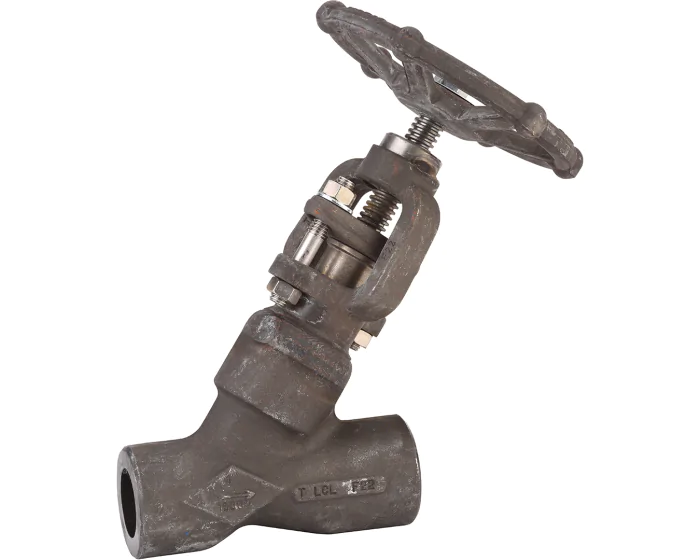

Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW

Discover the 406 series globe valve from the Sferaco forged steel range, A182 F22, slanted seat, Class 1500, TRIM 5, full bore with welded bonnet, stainless steel seat, ATEX for petroleum, chemical, steam
Choose your configuration
See all configurations
Réf.
CONF406015
(Indicative price) €808.55
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A182 F22
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 5
Brand OMB
Tightness test standard API 598
Bonnet Welded
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 410
ATEX compatible Yes
Torque (Nm) 106.4
Diameter of passage 11.00
Face to Face (mm) 110.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 3.9
Body material Carbon steel ASTM A182 F22
Bore Full
Packing gland Yes
PS (bar) 258
Connections Welding SW
Seats Stellite Gr.6
TS max (°C) 540
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Black
Plug material Stainless steel ASTM A276 type 410 Stellited
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW 1/2'' 406015 €808.55
52 pcs available in stock
Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW 3/4'' 406020 €991.88
31 pcs available in stock
Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW 1'' 406025 €1,131.80
21 pcs available in stock
Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW 1''1/2 406040 €2,249.05
18 pcs available in stock
Carbon steel A182F22 globe valve 406 TRIM 5 1500 lbs SW 2'' 406050 €2,329.62
8 pcs available in stock
