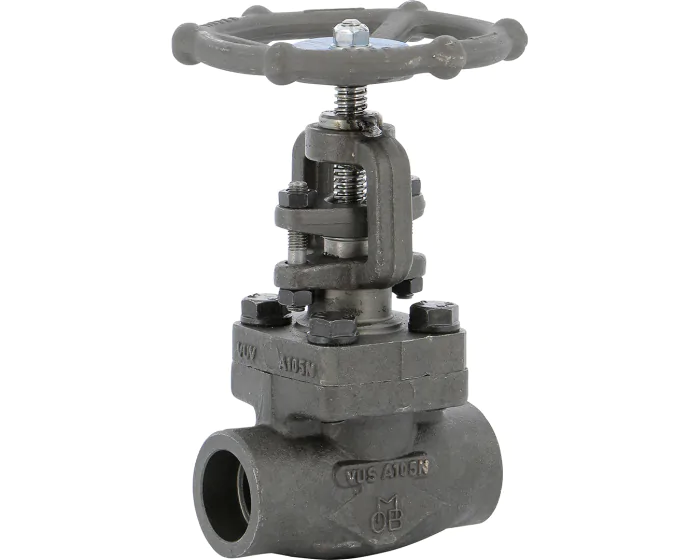

Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW

Discover the globe valve series 419 from the Sferaco forged steel range A350 LF2, Class 800, TRIM 12, SW welding, full bore with bolted bonnet, stainless steel rising stem for petroleum, chemical, steam
Choose your configuration
See all configurations
Réf.
CONF419015
(Indicative price) €204.50
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A350 LF2
Construction standard ISO 15761 - API 602 V8
CE risk category III Module H
TRIM TRIM 12
Brand OMB
Tightness test standard API 598
Bonnet Bolted
Stem sealing material Stainless steel AISI316 + spiral graphite
Steam Yes
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A479 type 316L
ATEX compatible Yes
Torque (Nm) 106.4
Diameter of passage 13.00
Face to Face (mm) 90.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 3.1
Body material Carbon steel ASTM A350 LF2
Bore Full
Packing gland Yes
PS (bar) 136
Connections Welding SW
Seats Stainless steel ASTM A479 S31600/S31603 stellite
TS max (°C) 425
TS min (°C) -46
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Main product colour Black
Plug material Stainless steel ASTM A182 F316/316L
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW 1/2'' 419015 €204.50
28 pcs available in stock
Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW 3/4'' 419020 €310.30
18 pcs available in stock
Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW 1'' 419025 €515.32
Currently not in stock
Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW 1''1/2 419040 €884.00
14 pcs available in stock
Carbon steel A350LF2 globe valve 419 TRIM 12 800 lbs SW 2'' 419050 €1,612.82
11 pcs available in stock
