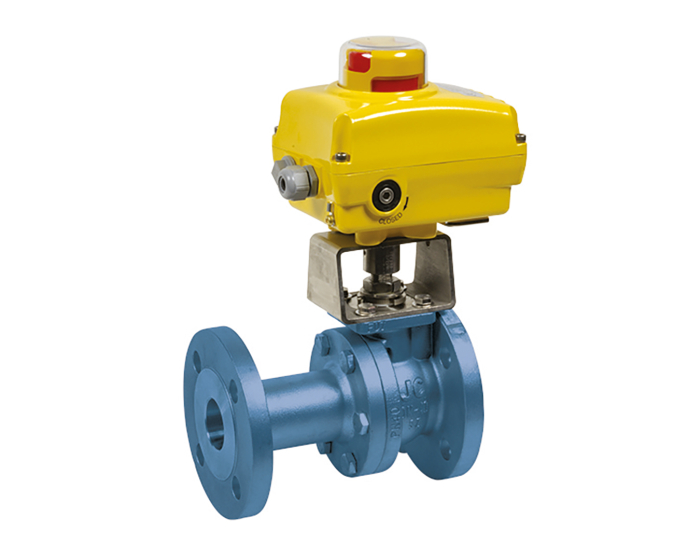

Carbon steel ball valve 316AICG + SA/NA electric actuator
The JC 340 AICG ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/graphite seats. It is actuated with an SA/NA electric actuator. PS: 40 bar, TS: 260°C. Flanges PN40 RF.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 130.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 18 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Graphite |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 260 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Carbon steel ball valve 316 AICG PN16 DN65 + NA09 230V AC | 316AICG065023120 | €3,729.48 |
4 pcs available in stock
|
|
| Carbon steel ball valve 316 AICG PN16 DN80 + NA15 230V AC | 316AICG080023130 | €4,508.22 |
10 pcs available in stock
|
|
| Carbon steel ball valve 316 AICG PN16 DN100 + NA28 230V AC | 316AICG100023150 | €5,737.75 |
4 pcs available in stock
|
|
| Carbon steel ball valve 316 AICG PN16 DN200 + NA150 230V AC | 316AICG200023210 | €22,275.00 |
Currently not in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN15 + SA03 230V AC | 340AICG015023000 | €1,317.38 |
8 pcs available in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN20 + SA03 230V AC | 340AICG020023000 | €1,437.62 |
15 pcs available in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN25 + SA03 230V AC | 340AICG025023000 | €1,450.00 |
7 pcs available in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN32 + SA05 230V AC | 340AICG032023010 | €2,099.58 |
29 pcs available in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN40 + SA05 230V AC | 340AICG040023010 | €2,125.00 |
9 pcs available in stock
|
|
| Carbon steel ball valve 340 AICG PN40 DN50 + NA09 230V AC | 340AICG050023120 | €3,472.25 |
2 pcs available in stock
|
