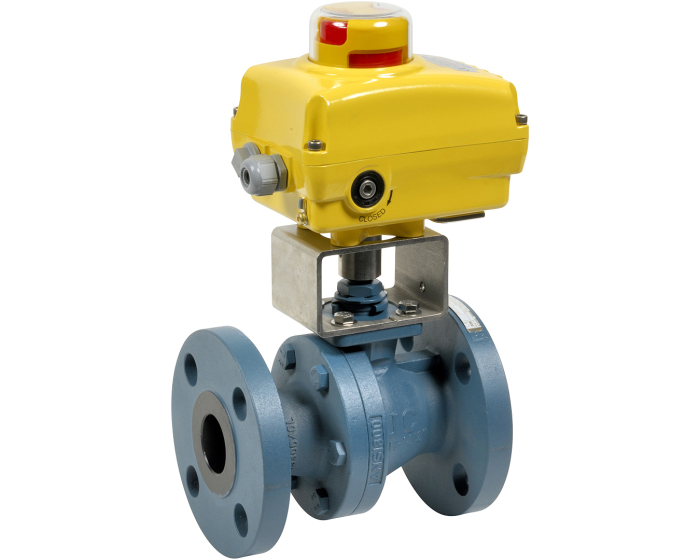

Carbon steel ball valve 530AIT + SA/NA electric actuator
The JC 530AIT ball valve has an A216 WCB carbon steel body, stainless steel ball and PTFE seats. It is actuated with an SA/NA electric actuator. PS: 50 bar, TS: 230°C. ANSI300 RF flanges.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 140.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Power (W) | 18 |
| Connections | Flanged #300 PN50 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Electrical connection | Per gland packing M20 x 1.5 |
| Fire safe | Yes |
