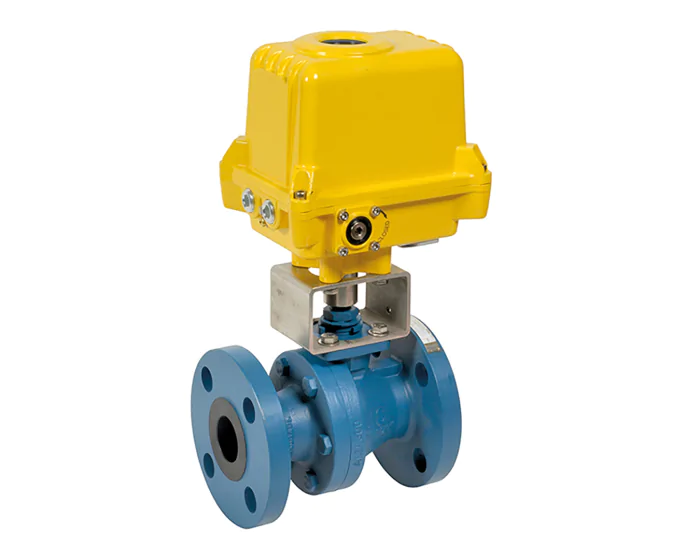

Carbon steel ball valve 530AIT + SA-X ATEX electric actuator

The JC 530AIT ball valve has an A216 WCB carbon steel body, stainless steel ball and PTFE seats. It is actuated with an ATEX electric actuator. PS: 50 bar, TS: 230°C. ANSI300 RF flanges.
Choose your configuration
See all configurations
Réf.
CONF530AIT015023310
(Indicative price) €2,169.33
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
ATEX atmosphere IIB
Shaft/stem matérial Stainless steel 316
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 140.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Carbon steel A216 WCB (1.0619)
ATEX protection mode EEx d
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 50
Power (W) 6
Connections Flanged #300 PN50
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA05-X
Electric actuator series SA-X/NA-X ATEX series
Seats PTFE
Operating time (s) 17.0
Surface temperature T4
Voltage 230 V AC
TS max (°C) 230
TS min (°C) -29
Ball valve design 2-piece body
ATEX zone 1. 2
Warranty period 1 year
CE Risk category III
Range JC Valves
Electrical connection By gland packing ATEX
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 530 AIT ANSI 300 1/2'' + SA05X 230V AC 530AIT015023310 €2,169.32
18 pcs available in stock
Carbon steel ball valve 530 AIT ANSI 300 3/4'' + SA05X 230V AC 530AIT020023310 €2,215.00
18 pcs available in stock
Carbon steel ball valve 530 AIT ANSI 300 1'' + SA05X 230V AC 530AIT025023310 €2,230.88
18 pcs available in stock
Carbon steel ball valve 530 AIT ANSI 300 2'' + NA09X 230V AC 530AIT050023330 €3,321.58
6 pcs available in stock
Carbon steel ball valve 530 AIT ANSI 300 3'' + NA28X 230V AC 530AIT080023360 €5,356.20
3 pcs available in stock
Carbon steel ball valve 530 AIT ANSI 300 4'' + NA38X 230V AC 530AIT100023370 €7,255.08
1 pcs available in stock
