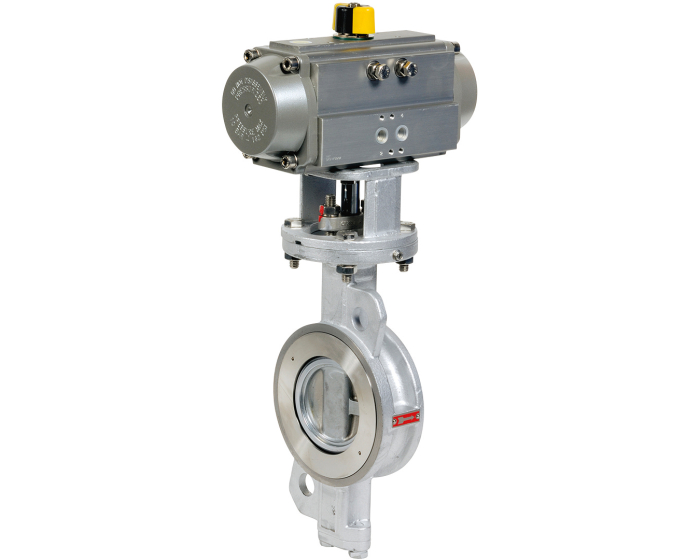

Carbon steel butterfly valve 1110 + RE/RES pneumatic actuator
The 1110 double offset butterfly valve has an A216WCB (1.0619) carbon steel body, a stainless steel disc and a PTFE/graphite seat. It is operated by an ALPHAIR pneumatic actuator. PS: 25 bar, TS: 210°C. Mounting between flanges PN25.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | BR 76 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 43.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 25 |
| Connections | Between flanges PN25 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| TS max (°C) | 210 |
| TS min (°C) | -29 |
| Butterfly valve design | Double offset |
| Wafer/lug | WAFER |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | High performance butterfly valves |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Carbon steel butterfly valve 1110 DN50 + RE76 | 260890017008R | €1,421.55 |
29 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN50 + RES86 | 260890017109R | €1,628.28 |
25 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN65 + RE76 | 260891017008R | €1,430.00 |
29 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN65 + RES86 | 260891017109R | €1,635.00 |
25 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN80 + RE76 | 260892017008R | €1,730.82 |
9 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN80 + RES101 | 260892017110R | €2,135.72 |
9 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN100 + RES116 | 260893017009R | €2,034.90 |
6 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN100 + RES116 | 260893017111R | €2,588.28 |
6 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN125 + RE101 | 260894017010R | €2,531.72 |
28 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN125 + RES126 | 260894017112R | €3,081.50 |
8 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN150 + RE116 | 260895017011R | €2,987.22 |
4 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN150 + RES146 | 260895017113R | €4,066.50 |
1 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN200 + RE126 | 260896017012R | €4,621.60 |
7 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN200 + RES161 | 260896017114R | €5,845.50 |
3 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN250 + RE126 | 260897017012R | €5,825.10 |
6 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN250 + RES181 | 260897017115R | €8,666.55 |
2 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN300 + RE146 | 260898017013R | €6,939.40 |
2 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN300 + RES201 | 260898017116R | €9,606.82 |
4 pcs available in stock
|
