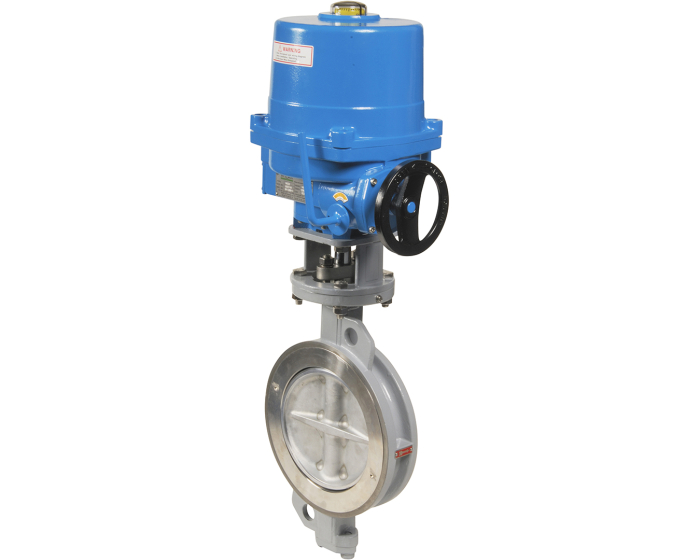

Carbon steel double offset butterfly valve 1100 + NA electric actuator
The 1110 double offset butterfly valve has an A216 WCB (1.0619) carbon steel body, a stainless steel disc and a PTFE/graphite seat. NA electric actuation. PS: 25 bar, TS: 210°C.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| DN | 50 |
| Duty service | S2 duty service - 70% |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 25 |
| Power (W) | 15 |
| Connections | Between flanges PN25 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 06 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | WAFER |
| Warranty period | 1 year |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Double offset butterfly valve 1100 DN50 + NA06 230 V AC | 260890023110 | €2,914.28 |
7 pcs available in stock
|
|
| Carbon steel butterfly valve 1110 DN65 + NA06 230V AC | 260891023110 | €2,908.90 |
7 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN80 + NA06 230V AC | 260892023110 | €3,183.82 |
7 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN100 + NA09 230V AC | 260893023120 | €3,394.90 |
6 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN125 + NA15 230 AC | 260894023130 | €4,186.82 |
17 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN150 + NA28 230 AC | 260895023150 | €4,756.10 |
9 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN200 + NA28 230 AC | 260896023150 | €6,246.55 |
9 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN250 + NA38 230 AC | 260897023160 | €7,794.55 |
2 pcs available in stock
|
|
| Carbon steel offset butterfly valve 1110 DN300 + NA38 230 AC | 260898023160 | €8,519.40 |
2 pcs available in stock
|
