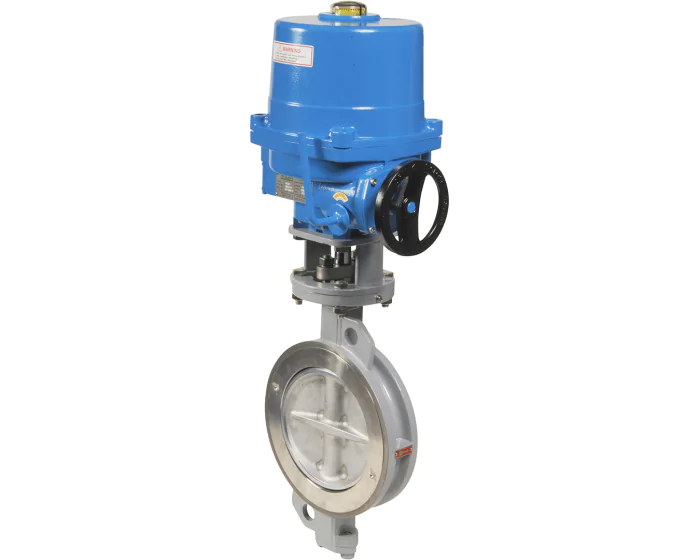

Carbon steel double offset butterfly valve 1115 + NA electric actuator

ANSI150 double offset disc valve, A216 WCB steel body, PS: 20 bar - TS: -25/+210°C. NA electric actuator. Mounting between ANSI150 flanges.
Choose your configuration
See all configurations
Réf.
CONF260910023110
(Indicative price) €3,132.50
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 20
Shaft/stem matérial Stainless steel 630 (17-4 PH)
Manual override By handwheel
Torque (Nm) 106.4
Declutchable Yes
Duty service S2 duty service - 70%
Face to Face (mm) 43.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Disc material Stainless steel CF8M
Packing gland Graphite
PS (bar) 20
Power (W) 15
Connections Between flanges #150 PN20
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type NA 06
Electric actuator series SA/NA series
Seats PTFE-Graphite
Operating time (s) 17.0
TS max (°C) 210
TS min (°C) -25
Butterfly valve design Double offset
Wafer/lug WAFER
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
CS double offset butterfly valve 1115 ANSI 150 2'' + NA06 230V AC 260910023110 €3,132.50
8 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 2''1/2 + NA06 230V AC 260911023110 €3,133.32
8 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 3'' + NA06 230V AC 260912023110 €3,366.82
8 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 4'' + NA09 230V AC 260913023120 €3,612.08
7 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 5'' + NA15 230V AC 260914023130 €4,703.20
2 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 6'' + NA28 230V AC 260915023150 €4,848.42
9 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 8'' + NA28 230V AC 260916023150 €6,427.75
6 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 10'' + NA38 230V AC 260917023160 €8,530.62
2 pcs available in stock
Double offset butterfly valve 1115 ANSI 150 12'' + NA38 230V AC 260918023160 €10,831.62
2 pcs available in stock
