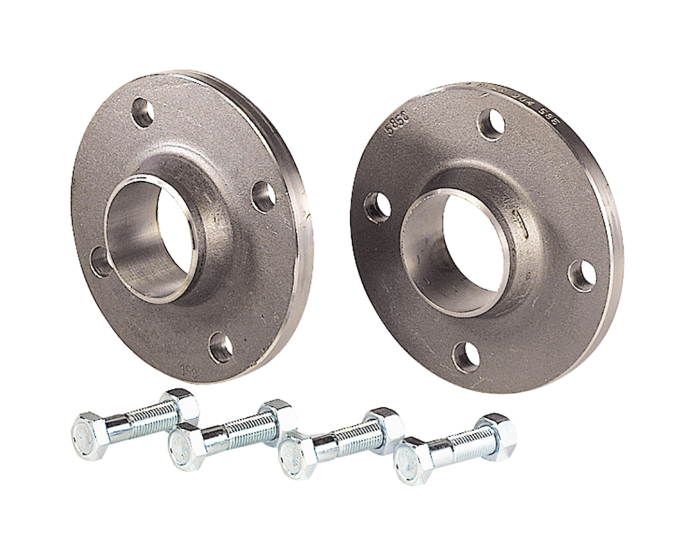

Carbon steel flange set for check valve 364 - 2104

Discover the equipment for P245GH steel flanges for fluid, gas and drinking water valves after flanged fitting
Choose your configuration
See all configurations
Réf.
CONF2104050
(Indicative price) €114.20
Details
Details
DN inches NPS 2''
Construction standard EN 1092-1
Flange type Equipment Kit Flanges
Type of collar 2 Carbon steel flanges. 4 bolts M16x60
Number of flange holes 4
Hole diameter L (mm) 18.0
Drilling circle diameter flange ØK (mm) 125.0
Bolt diameter M16
Bolt length (mm) 60.0
Flange facing type Type B - Raised face
Gasket bearing diameter e (mm) 102.0
Flange thickness b (mm) 18.0
Weld-neck thickness S (mm) 2.9
Flange type Equipment for single plate check valves
Material Forged steel P250GH
Application Industry
Tube diameter (mm) 60.30
Fluid Oxygen / Argon / Nitrogen
PS (bar) 16
Connections Flanged PN10/16
TS max (°C) 450
TS min (°C) -10
Warranty period 2 years
Outside diameter (mm) 165

Configurations

Product Reference Price Stock
Carbon steel flange set for check valve 364 - 2104 DN40 2104040 €114.20
1073 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN50 2104050 €114.68
469 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN65 2104065 €127.00
Currently not in stock
Carbon steel flange set for check valve 364 - 2104 DN80 2104080 €150.05
1913 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN100 2104100 €176.70
1280 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN125 2104125 €228.32
39 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN150 2104150 €335.62
Currently not in stock
Carbon steel flange set for check valve 364 - 2104 DN200 2104200 €471.80
176 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN250 2104250 €642.18
236 pcs available in stock
Carbon steel flange set for check valve 364 - 2104 DN300 2104300 €869.38
271 pcs available in stock
