Carbon steel wafer swing check valve 351 single plate NBR gasket
The 351 series is a wafer swing check valve with single plate, carbon steel body and plate, NBR gasket, designed for small space requirement, for heating, non-aromatic hydrocarbon, fuel oil, water, grease, oil and glycol networks.

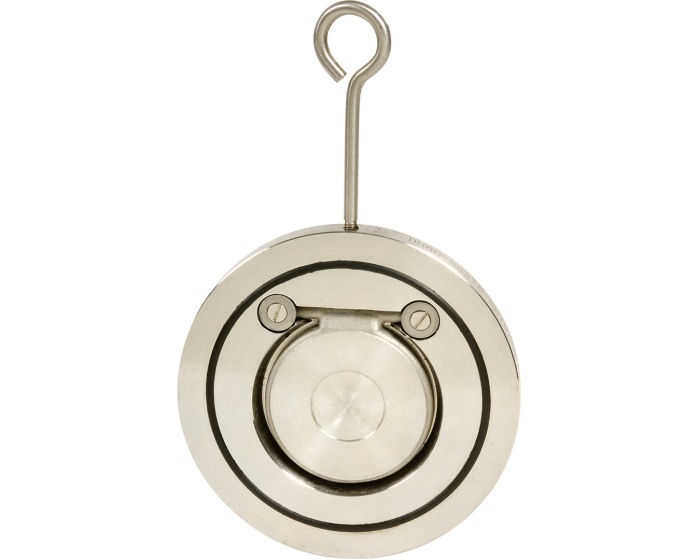

![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/3/5/351-clapet-simple-battant-acier-NBR-entrebrides-pn16.jpg)
Documentation
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Mounting direction | Horizontal or vertical upward flow |
Construction standard | API 594 |
EN face-to-face standard | EN 558 series 97 |
Tightness test standard | API 598. table 6 |
Closure member material | Zinc plated carbon steel |
Hoisting eye | Yes |
Application | Water supply and distribution network |
Face to Face (mm) | 85.0 |
Fluid | Hot / Cold water |
Gasket | NBR |
Body material | Carbon steel |
PS (bar) | 16 |
Connections | Between flanges PN10/16 |
Seats | NBR |
TS max (°C) | 80 |
TS min (°C) | -10 |
Obturator type | Plate |
