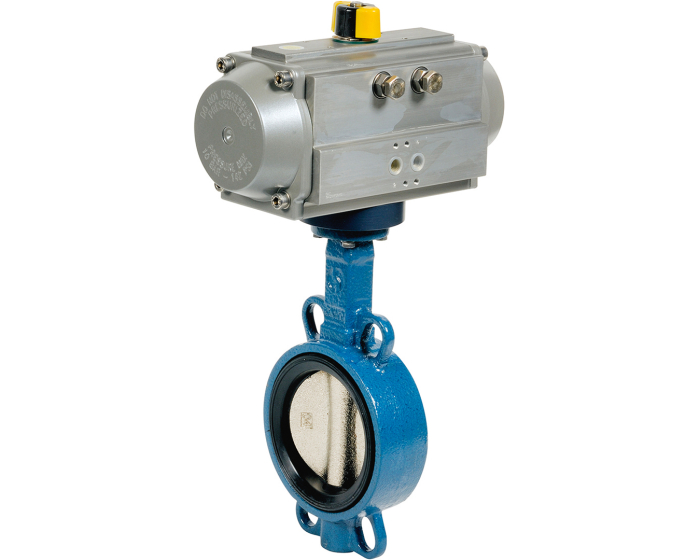

Cast iron butterfly valve 1125 + RE/RES pneumatic actuator

The 1125 wafer butterfly valve has a cast iron GL body, a nickel-plated disc and an EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
Choose your configuration
See all configurations
Réf.
CONF262003017006R
(Indicative price) €477.05
Details
Details
Option certificate 3.1 No
Maximum delta P (bar) 10
Actuator BR 51
Operating angle (°) 90
Shaft/stem matérial Stainless steel 416
Adjustable limit screws Yes
ATEX compatible No
Face to Face (mm) 33.0
Seat EPDM
Body material Cast iron
Number of ways 2
Disc material Nickel-plated ductile iron
PS (bar) 16
Connections Between flanges PN10/16 #150
TS max (°C) 110
TS min (°C) -10
Butterfly valve design Concentric
Wafer/lug Wafer
Warranty period 1 year
CE Risk category III
Range HVAC
Fire safe No

Configurations

Product Reference Price Stock
Cast iron butterfly valve 1125 DN40 + RE51 262003017006R €477.05
81 pcs available in stock
Cast iron butterfly valve 1125 DN40 + RES64 262003017107R €557.38
36 pcs available in stock
Cast iron butterfly valve 1125 DN50 + RE51 262004017006R €478.75
81 pcs available in stock
Cast iron butterfly valve 1125 DN50 + RES64 262004017107R €559.05
36 pcs available in stock
Cast iron butterfly valve 1125 DN65 + RE64 262005017007R €503.88
27 pcs available in stock
Cast iron butterfly valve 1125 DN65 + RES76 262005017108R €677.08
75 pcs available in stock
Cast iron butterfly valve 1125 DN80 + RE64 262006017007R €515.25
27 pcs available in stock
Cast iron butterfly valve 1125 DN80 + RES76 262006017108R €709.20
75 pcs available in stock
Cast iron butterfly valve 1125 DN100 + RE76 262007017008R €623.32
84 pcs available in stock
Cast iron butterfly valve 1125 DN100 + RES101 262007017110R €1,133.42
28 pcs available in stock
Cast iron butterfly valve 1125 DN125 + RE76 262008017008R €665.30
Currently not in stock
Cast iron butterfly valve 1125 DN125 + RES101 262008017110R €1,071.58
Currently not in stock
Cast iron butterfly valve 1125 DN150 + RE86 262009017009R €834.80
15 pcs available in stock
Cast iron butterfly valve 1125 DN150 + RES116 262009017111R €1,432.55
20 pcs available in stock
Cast iron butterfly valve 1125 DN200 + RE101 262010017010R €1,094.05
19 pcs available in stock
Cast iron butterfly valve 1125 DN200 + RES126 262010017112R €1,859.18
15 pcs available in stock
Cast iron butterfly valve 1125 DN250 + RE116 262011017011R €2,036.92
8 pcs available in stock
Cast iron butterfly valve 1125 DN250 + RES146 262011017113R €3,116.30
6 pcs available in stock
Cast iron butterfly valve 1125 DN300 + RE126 262012017012R €2,251.68
11 pcs available in stock
Cast iron butterfly valve 1125 DN300 + RES181 262012017115R €4,584.30
1 pcs available in stock
