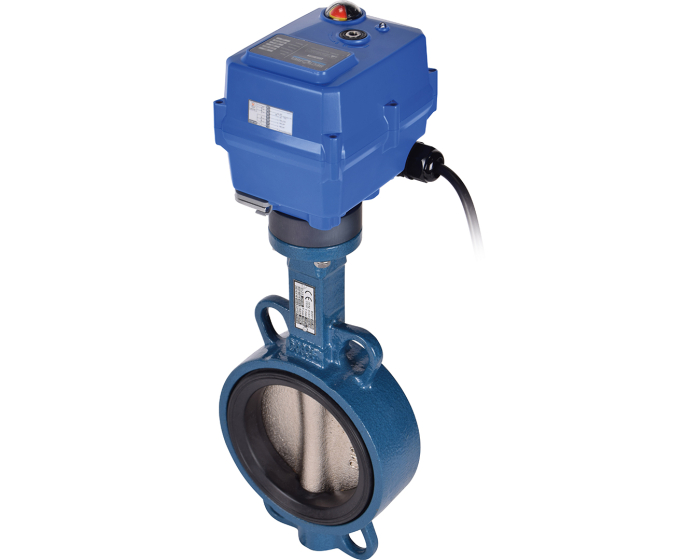

Cast iron butterfly valve 1125 + TCR electric actuator
The 1125 butterfly valve has a ductile iron GL body, a nickel-plated ductile iron disc and an EPDM seat. It is actuated with a TCR-N electric actuator.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Seat | EPDM |
| Body material | Cast iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | No |
