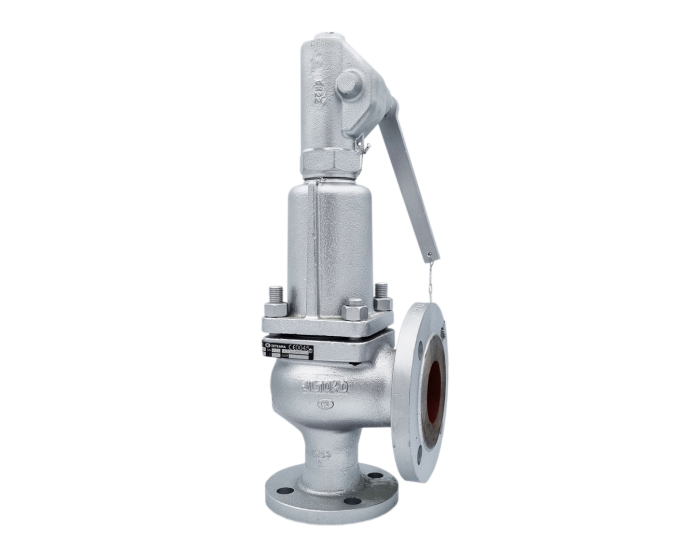

Cast iron flanged safety valve 6301 W PN16 DN25/40

The Type 6301 W Spring Safety Valve made of cast iron is designed to protect water tanks and hot water generators. It operates automatically and closes when pressure conditions return to normal.
Choose your configuration
See all configurations
Réf.
CONF25042502
(Indicative price) €1,611.13
Details
Details
Option certificate 3.1 Yes
Torque (Nm) 106.4
Test device by lever
DN 15
Exhaust system pipe outlet
Body material Cast iron
Bearing EPDM
Connections Flanged PN16
TS max (°C) 120
TS min (°C) -10
Warranty period 1 year
CE Risk category IV

Configurations

Product Reference Price Stock
Cast iron flanged safety valve 6301 W PN16 DN25 0.45-0,68 bar 25042502 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 0.66-1 bar 25042503 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 0.95-1.4 bar 25042504 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 1.3-1.9 bar 25042505 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 1.8-2.6 bar 25042506 €1,611.12
1 pcs available in stock
Cast iron flanged safety valve 6301 W PN16 DN25 2.5-3.6 bar 25042507 €1,611.12
1 pcs available in stock
Cast iron flanged safety valve 6301 W PN16 DN25 3.5-5 bar 25042508 €1,611.12
2 pcs available in stock
Cast iron flanged safety valve 6301 W PN16 DN25 4.8-6.3 bar 25042509 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 6-8 bar 25042510 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 7.5-10 bar 25042511 €1,611.12
Currently not in stock
Cast iron flanged safety valve 6301 W PN16 DN25 9.5-12.5 bar 25042512 €1,611.12
Currently not in stock
