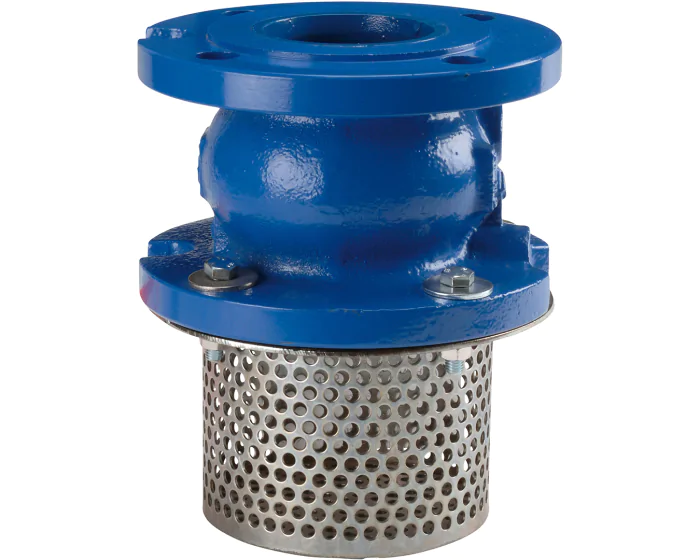

Cast iron foot valve 363 PN16 ACS
Syveco offers the GJL-250 series 363 single guide check valve in cast iron with flanges and galvanised steel strainer PN10/16, ACS 4MS certified, for water networks
Documentation
Certificat ACS Clapet à Ogive Fonte à brides
pdf - 185.4 ko
Certificate of Conformity
pdf - 211.1 ko
Notice montage clapet ogive
pdf - 736 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Mounting direction | Vertical |
Tightness test standard | ISO 5208. Rate A |
Closure member material | Cast iron |
Strainer basket material | Galvanised carbon steel |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
Face to Face (mm) | 100.0 |
Fluid | Hot / Cold water |
Gasket | EPDM |
Kv (m³/h) | 86.0 |
Body material | Cast iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
Seats | Cast iron |
Screen (mesh) | 60/10° |
TS max (°C) | 120 |
TS min (°C) | -10 |
Drinking water compatibility | Yes |
Obturator type | Nozzle |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Cast iron foot valve 363 PN16 ACS DN50 | 363050 | €329.90 |
11 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN65 | 363065 | €437.50 |
25 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN80 | 363080 | €540.68 |
38 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN100 | 363100 | €733.10 |
38 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN125 | 363125 | €1,026.72 |
32 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN150 | 363150 | €1,440.60 |
53 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN200 | 363200 | €2,172.50 |
27 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN250 | 363250 | €6,313.50 |
1 pcs available in stock
|
|
Cast iron foot valve 363 PN16 ACS DN300 | 363300 | €8,476.72 |
2 pcs available in stock
|
