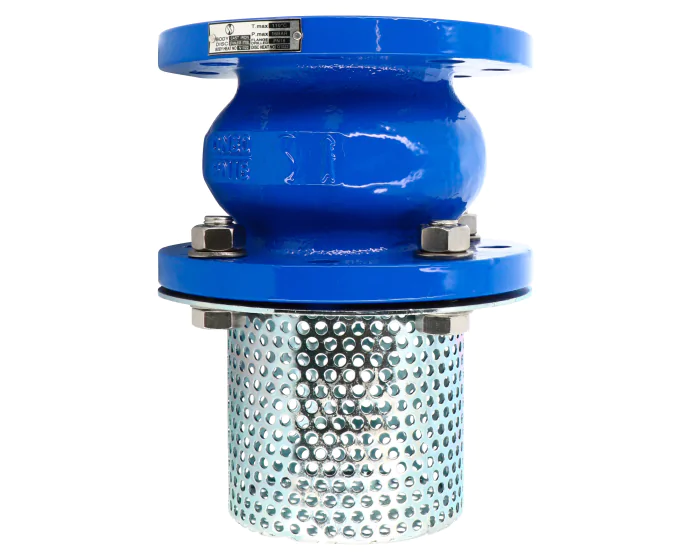

Cast iron foot valve 368 PN16
Syveco offers the single check valve series 368 in cast iron, flanged PN16 with galvanised steel strainer, all position valve, stainless steel ogive with spring, for water networks
Documentation
Certificate of Conformity
pdf - 210.3 ko
Notice montage clapet a disque
pdf - 397.5 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Mounting direction | Vertical |
Tightness test standard | API 598. table 6 |
Closure member material | Cast iron |
Strainer basket material | Galvanised carbon steel |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
Diameter of passage | 56.00 |
Face to Face (mm) | 100.0 |
Fluid | Hot / Cold water |
Gasket | EPDM |
Body material | Cast iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
Seats | Cast iron |
Screen (mesh) | 60/10° |
TS max (°C) | 110 |
TS min (°C) | -10 |
Obturator type | Nozzle |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Cast iron foot valve 368 PN16 DN50 | 368050 | €268.68 |
11 pcs available in stock
|
|
Cast iron foot valve 368 PN16 DN65 | 368065 | €309.22 |
25 pcs available in stock
|
|
Cast iron foot valve 368 PN16 DN80 | 368080 | €398.10 |
Currently not in stock
|
|
Cast iron foot valve 368 PN16 DN100 | 368100 | €540.32 |
43 pcs available in stock
|
|
Cast iron foot valve 368 PN16 DN125 | 368125 | €703.05 |
Currently not in stock
|
|
Cast iron foot valve 368 PN16 DN150 | 368150 | €1,010.00 |
4 pcs available in stock
|
|
Cast iron foot valve 368 PN16 DN200 | 368200 | €1,719.68 |
7 pcs available in stock
|
|
Cast iron foot valve 368 PN16 DN250 | 368250 | €2,616.00 |
14 pcs available in stock
|
