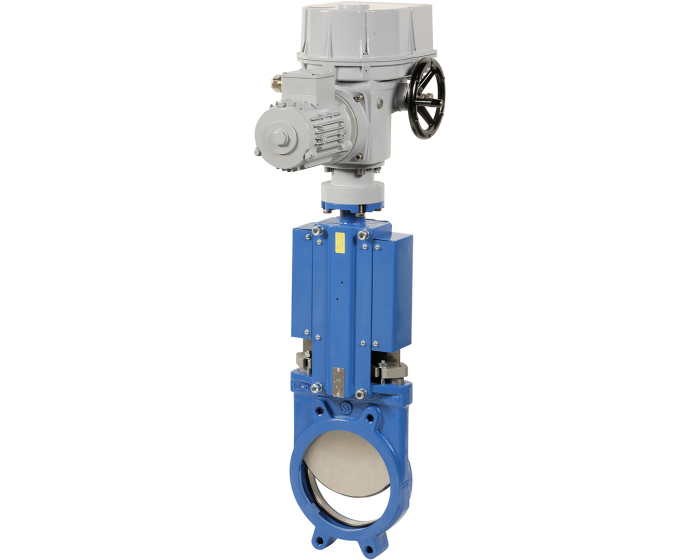

Cast iron knife gate valve 170 + SO2/MO3 multi-turn electric actuator
Knife valves with cast iron GL body, NBR seat with REGADA SO2/MO3 electric actuator. PS: 10 bar - TS: 90°C. Unidirectional. Mounting between flanges PN10.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Duty service | S4 duty service - 25% |
| Face to Face (mm) | 40.0 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + NBR |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SO2 |
| Electric actuator series | SO/MO series (REGADA) |
| Seats | NBR |
| Operating time (s) | 39 |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
| Electrical connection | by gland packing |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Cast iron knife gate valve 170 DN50 + SO2 230V AC | 440004027100 | €6,975.82 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN65 + SO2 230V AC | 440005027100 | €7,027.92 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN80 + SO2 230V AC | 440006027100 | €7,050.00 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN100 + SO2 230V AC | 440007027100 | €7,104.65 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN125 + SO2 230V AC | 440008027100 | €7,172.50 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN150 + SO2 230V AC | 440009027100 | €7,308.88 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN200 + MO3 230V AC | 440010027150 | €10,922.20 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN250 + MO3 230V AC | 440011027150 | €11,260.78 |
Currently not in stock
|
|
| Cast iron knife gate valve 170 DN300 + MO3 230V AC | 440012027150 | €11,928.10 |
Currently not in stock
|
