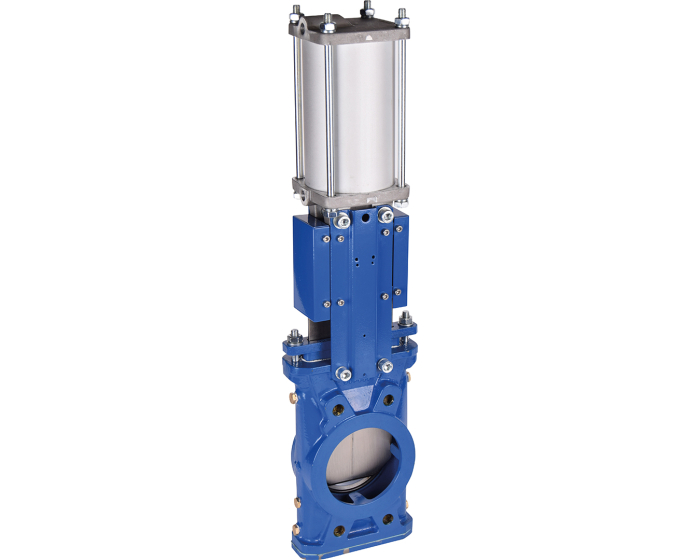

Cast iron knife gate valve 174 + double acting pneumatic actuator

The 174 series unidirectional knife gate valves is made of cast iron GL body, NBR seat and a dismantling bottom. It is actuated with double acting pneumatic cylinder. Mounting between flanges PN10. PS: 10 bar, TS: -10/+90°C.
Choose your configuration
See all configurations
Réf.
CONF442009035015
(Indicative price) €1,665.25
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 410
ATEX compatible Yes
Torque (Nm) 106.4
DN 150
Face to Face (mm) 76.0
Knife gate material Stainless steel 304
Body material Cast iron
Packing gland PTFE + NBR
PS (bar) 2.5
Connections Between flanges PN10
Seats NBR
Surface temperature TX
TS max (°C) 90
TS min (°C) -10
Pneumatic actuator type Double acting
Direction Unidirectional
Warranty period 1 year
CE Risk category I

Configurations

Product Reference Price Stock
Cast iron knife gate valve 174 DN150 +double acting pneumatic actuator 442009035015 €1,665.25
Currently not in stock
Cast iron knife gate valve 174 DN200 +double acting pneumatic actuator 442010035016 €2,448.05
Currently not in stock
Cast iron knife gate valve 174 DN250 +double acting pneumatic actuator 442011035017 €3,297.38
Currently not in stock
Cast iron knife gate valve 174 DN300 +double acting pneumatic actuator 442012035018 €5,107.58
Currently not in stock
