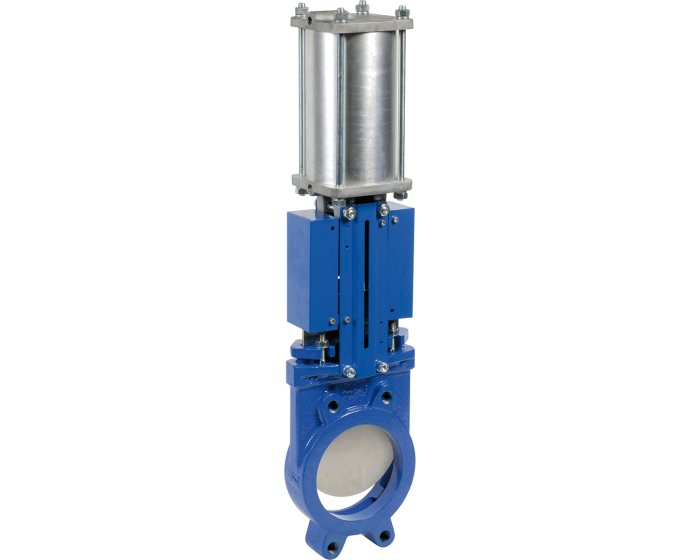

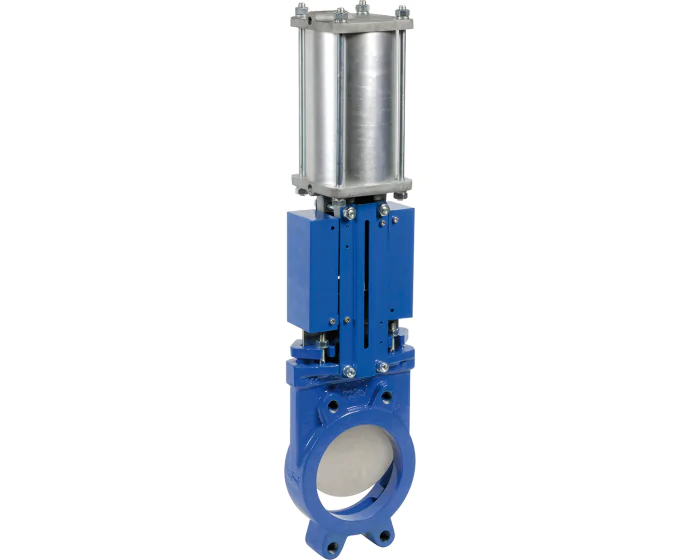

Cast iron knife gate valve 176 + double acting pneumatic actuator

The 176 series unidirectional knife gate valves is made of cast iron GL body, metal seat and is actuated with double acting pneumatic cylinder. Mounting between flanges PN10. PS: 10 bar, TS: -10/+90°C.
Choose your configuration
See all configurations
Réf.
CONF446004035010
(Indicative price) €508.43
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 410
ATEX compatible Yes
Face to Face (mm) 40.0
Knife gate material Stainless steel 304
Body material Cast iron
Packing gland PTFE + NBR
PS (bar) 10
Connections Between flanges PN10
Seats Metal/metal
Surface temperature TX
TS max (°C) 90
TS min (°C) -10
Pneumatic actuator type Double acting
Direction Unidirectional
ATEX zone 2. 22
Warranty period 1 year
CE Risk category I

Configurations

Product Reference Price Stock
Cast iron knife gate valve 176 DN50 +double acting pneumatic actuator 446004035010 €508.42
Currently not in stock
Cast iron knife gate valve 176 DN65 +double acting pneumatic actuator 446005035011 €647.58
1 pcs available in stock
Cast iron knife gate valve 176 DN80 +double acting pneumatic actuator 446006035012 €653.68
2 pcs available in stock
Cast iron knife gate valve 176 DN100 +double acting pneumatic actuator 446007035013 €786.80
Currently not in stock
Cast iron knife gate valve 176 DN125 +double acting pneumatic actuator 446008035014 €1,034.95
Currently not in stock
Cast iron knife gate valve 176 DN150 +double acting pneumatic actuator 446009035015 €1,041.00
Currently not in stock
Cast iron knife gate valve 176 DN200 +double acting pneumatic actuator 446010035016 €1,761.25
Currently not in stock
Cast iron knife gate valve 176 DN250 +double acting pneumatic actuator 446011035017 €2,481.45
1 pcs available in stock
Cast iron knife gate valve 176 DN300 +double acting pneumatic actuator 446012035018 €2,965.68
1 pcs available in stock
Cast iron knife gate valve 176 DN350 +double acting pneumatic actuator 446013035019 €5,326.08
1 pcs available in stock
Cast iron knife gate valve 176 DN400 +double acting pneumatic actuator 446014035020 €5,386.58
Currently not in stock
