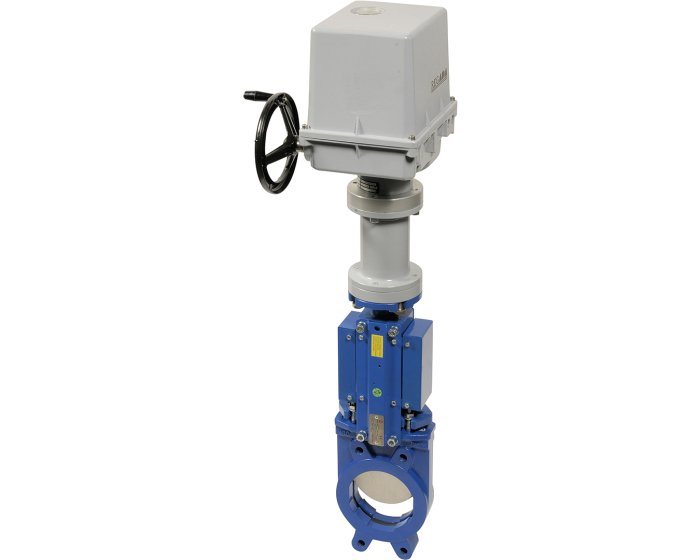

Cast iron knife gate valve 177 + SO2/MO3 multi-turn electric actuator
Bi-directional knife valves. Cast iron body. EPDM bi-directional seal. Actuation with REGADA 230 Vac electric actuator.
Details
| Option certificate 3.1 | Yes |
|---|---|
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| Duty service | S4 duty service - 25% |
| Face to Face (mm) | 40.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + NBR |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SO2 |
| Electric actuator series | SO/MO series (REGADA) |
| Seats | EPDM |
| Operating time (s) | 39 |
| Voltage | 230 V AC |
| TS max (°C) | 110 |
| TS min (°C) | 0 |
| Direction | Bidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
| Electrical connection | by gland packing |
