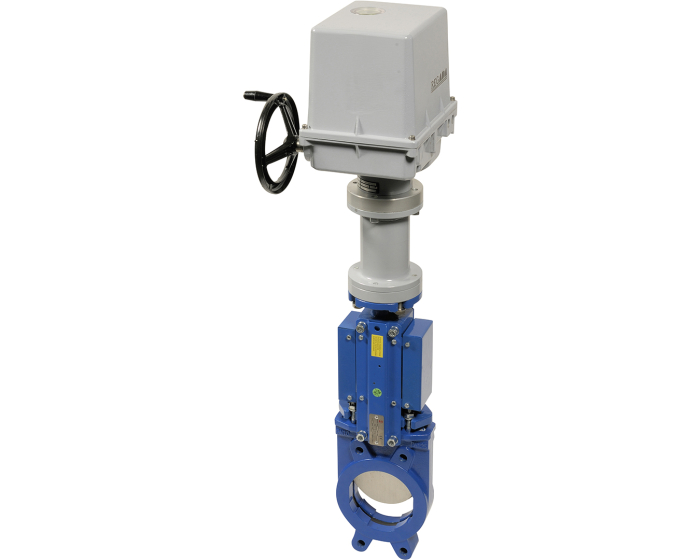

Cast iron knife gate valve 178 + SO2/MO3 multi-turn electric actuator
The S-178 knife valve is designed for the automatic shut-off of pipes with heavy fluids such as slurries and powders. Cast iron body. NBR bi-directional sealing. Actuation with REGADA 230 Vac electric actuator.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Duty service | S4 duty service - 25% |
| Face to Face (mm) | 40.0 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + NBR |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SO2 |
| Electric actuator series | SO/MO series (REGADA) |
| Seats | NBR |
| Operating time (s) | 39 |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Direction | Bidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
| Electrical connection | by gland packing |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Cast iron knife gate valve 178 DN50 + SO2 230V AC | 448004027100 | €5,841.45 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN65 + SO2 230V AC | 448005027100 | €5,865.25 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN80 + SO2 230V AC | 448006027100 | €5,871.22 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN100 + SO2 230V AC | 448007027100 | €5,990.42 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN125 + SO2 230V AC | 448008027100 | €6,079.85 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN150 + SO2 230V AC | 448009027100 | €6,216.98 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN200 + SO2 230V AC | 448010027150 | €10,031.78 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN250 + MO3 230V AC | 448011027150 | €10,103.30 |
Currently not in stock
|
|
| Cast iron knife gate valve 178 DN300 + MO3 230V AC | 448012027150 | €10,580.15 |
Currently not in stock
|
