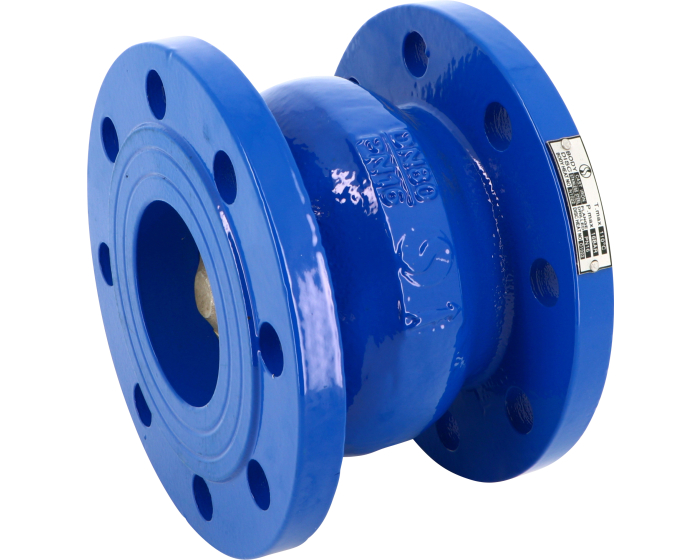

Cast iron spring check valve 369 flanged PN16
The 369 Sferaco Cast Iron, Stainless Steel Disc Flanged Check Valve PN16 can be installed in any position, with low head loss and quiet operation.
Documentation
Certificate of Conformity
pdf - 211.4 ko
Notice montage clapet a disque
pdf - 397.5 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Mounting direction | All positions |
Tightness test standard | API 598. table 6 |
Closure member material | Cast iron |
Application | Water supply and distribution network |
Torque (Nm) | 106.4 |
Diameter of passage | 56.00 |
Face to Face (mm) | 100.0 |
Gasket | EPDM |
Kv (m³/h) | 95.0 |
PS (bar) | 16 |
TS max (°C) | 110 |
TS min (°C) | -10 |
Obturator type | Nozzle |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Cast iron spring check valve 369 flanged PN16 DN50 | 369050 | €174.38 |
124 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN65 | 369065 | €208.45 |
71 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN80 | 369080 | €280.70 |
Currently not in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN100 | 369100 | €382.40 |
43 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN125 | 369125 | €522.80 |
Currently not in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN150 | 369150 | €785.42 |
4 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN200 | 369200 | €1,508.00 |
7 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN250 | 369250 | €2,327.50 |
14 pcs available in stock
|
|
Cast iron spring check valve 369 flanged PN16 DN300 | 369300 | €3,292.22 |
4 pcs available in stock
|
