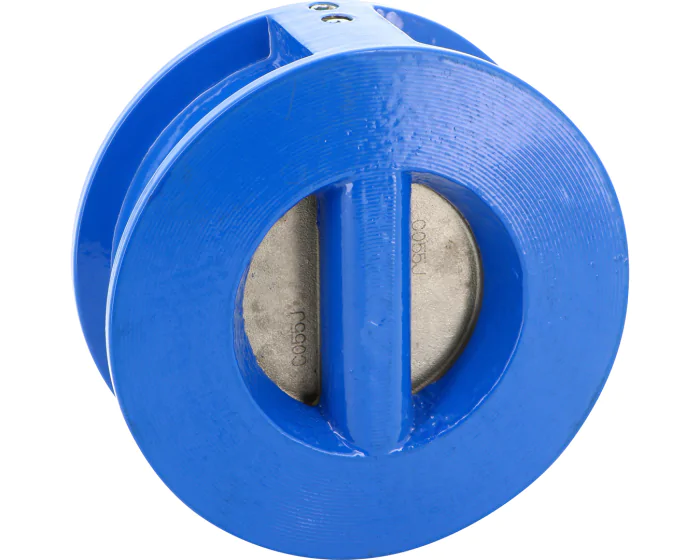

Cast iron wafer swing check valve 375 CF8M dual plate EPDM gasket ACS
The 375 wafer swing check valve consists of a cast iron body and dual plates, and an EPDM gasket. It complies with EN 558 Series 50. It is suitable for heating and drinking water. Type Approval for marine applications and ACS certified.
Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Construction standard | API 594 |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 series 50 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel ASTM A351 CF8M |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Face to Face (mm) | 54.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Gasket | EPDM |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Seats | EPDM |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| CE | Yes |
| Obturator type | Plate |
