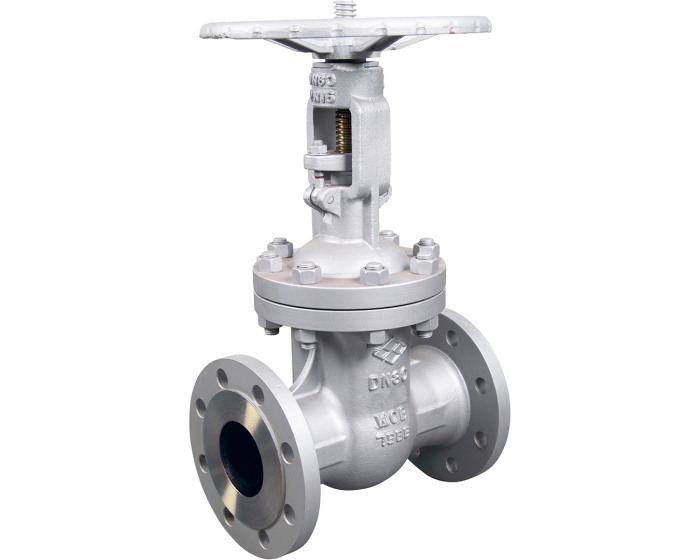

Cast steel A216WCB gate valve 141 RF PN40 DIN F7

The DIN cast steel gate valve

Our DIN carbon steel gate valve presents an A216WCB cast steel body and bonnet and is a TRIM 8 PN40 flanged model. Withstanding a maximum pressure of 40 bar and allowing temperatures ranging from -29 °C up to +425 °C, this cast steel gate valve is available in various sizes, from DN50 to DN300. It is face-to-face according to EN 558 series 26 (DIN 3202 series F7).

It also boasts a number of other technical characteristics:

• It is a full-bore valve

• Stem is rising and non-rotating

• Handwheel is fixed and non-rising

• Wedge is one-piece and flexible

• Seat is made of carbon steel with Stellite® Gr.6

• Graphite packing gland and stainless steel/graphite bonnet gasket

• Painted RAL 7001 grey, 60 µm thickness

• ATEX compliant for Zones 1 & 21, 2 & 22

• CE marked (PED 2014/68/EU)

This DIN cast steel gate valve is mainly used in industries such as water distribution, gas oil, steam, petrochemical and petroleum industries, and gas systems.
