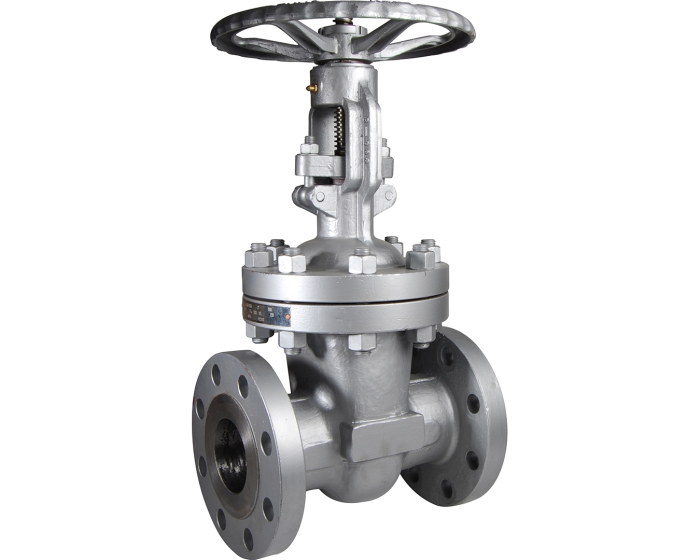

Cast steel A216WCB gate valve 149 RF ANSI300

The series 149 gate valve is made of cast carbon steel, TRIM 5, flanged Class 300 PN50, full bore, graphite packing gland and a stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas industries.
Choose your configuration
See all configurations
Réf.
CONF149050
(Indicative price) €714.05
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A216 WCB
Construction standard API 600
CE risk category III Module H
NACE MR0175 Yes
TRIM TRIM 5
Paint coating thickness (µm) 60.00
EN face-to-face standard EN 558 Series 4
ASME face-to-face standard ASME B16.10
Face to face standard EN 558 Series 4. ASME B16.10
Number of opening/closing turns 15
Tightness test standard API 598
Bonnet Bolted
Stem sealing material Graphite
Closure member material Stellite Gr6 coated carbon steel ASTM A216 WCB
Opening device Handwheel
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A182 F6a
ATEX compatible Yes
Torque (Nm) 50.0
Diameter of passage 51.00
Face to Face (mm) 216.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Gasket Stainless steel AISI 304 + Graphite
Kv (m³/h) 265.0
Body material Carbon steel A216 WCB (1.0619)
Gate material Carbon steel ASTM A216 WCB+ Stellite Gr.6
Bore Full
Packing gland Yes
PS (bar) 50
Connections Flanged #300 PN50
RAL (Paint) 7001
Seats Carbon steel ASTM A105. stellite Gr.6 coated
TS max (°C) 425
TS min (°C) -29
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rising
CE Yes
Handle material Cast iron

Configurations

Product Reference Price Stock
Cast steel A216WCB gate valve 149 RF ANSI300 2'' 149050 €714.05
29 pcs available in stock
Cast steel A216WCB gate valve 149 RF ANSI300 3'' 149080 €1,589.95
5 pcs available in stock
Cast steel A216WCB gate valve 149 RF ANSI300 4'' 149100 €1,387.70
8 pcs available in stock
Cast steel A216WCB gate valve 149 RF ANSI300 6'' 149150 €3,412.70
8 pcs available in stock
Cast steel A216WCB gate valve 149 RF ANSI300 8'' 149200 €5,166.12
Currently not in stock
Cast steel A216WCB gate valve 149 RF ANSI300 10'' 149250 €7,000.00
2 pcs available in stock
Cast steel A216WCB gate valve 149 RF ANSI300 12'' 149300 €10,777.80
2 pcs available in stock
