Compact electric actuated ball valve Lyva 3 with manual override
The LYVA 3 CM is a stainless steel ball valve with a 2-wire capacitor return electric actuator, with ACS (drinking water) approval. It has a manual override.

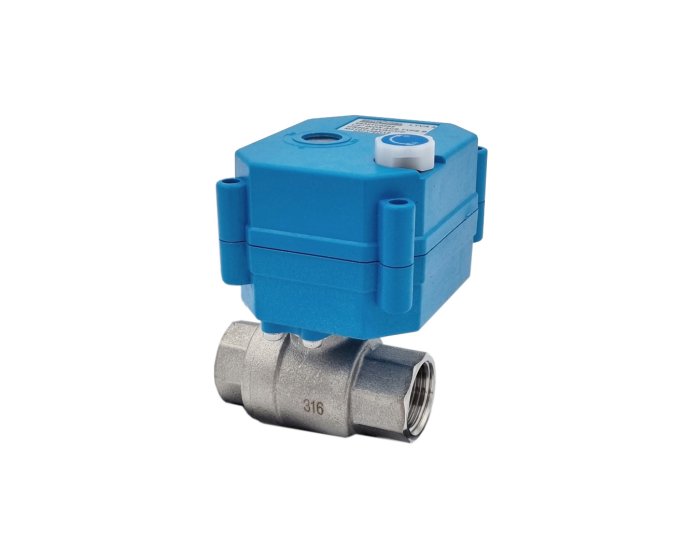

![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/v/a/vanne-a-sphere-electrique-lyva-commande-manuelle-89321c0262.jpg)
Documentation
Details
Option certificate 3.1 | No |
---|---|
Shaft/stem matérial | Stainless steel 316 |
Face to Face (mm) | 62.0 |
Protection index (IP) | IP 67 |
Gasket | EPDM |
Body material | Stainless steel CF8M (1.4408) |
Position | Normally closed |
PS (bar) | 10 |
Connections | BSP FF |
Operating time (s) | 6.0 |
Voltage | 24 V AC/DC |
TS max (°C) | 90 |
TS min (°C) | 0 |
Solenoid pilot valve ways | 2/2 |
Warranty period | 1 year |
CE | Excluded (Article 4. §3) |
Electrical connection | Cable 1500 mm |
