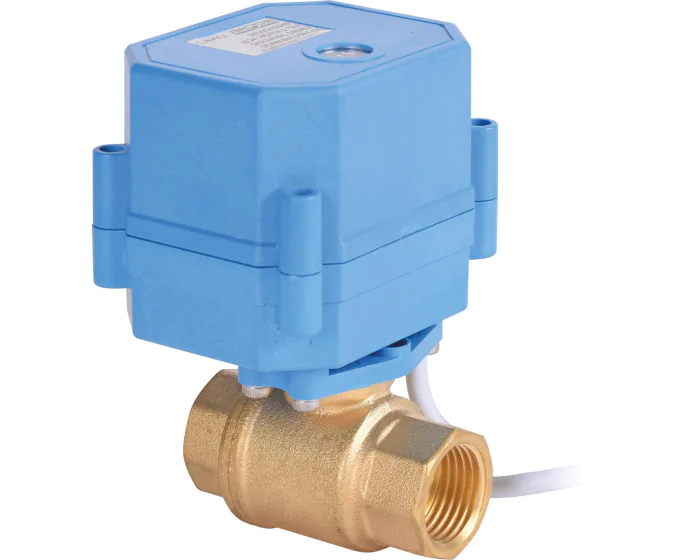

Compact electric actuated brass ball valve Lyva 2
The LYVA 2 is a brass ball valve with a 2-wire capacitor return electric actuator, NC or NO, with ACS approval (drinking water).
Documentation
Certificat ACS pour vanne à sphère électrique laiton LYVA 2
pdf - 266.2 ko
Certificate of Conformity
pdf - 192.4 ko
Certificate of Conformity
pdf - 192.5 ko
Fiche technique LYVA 2 ACS vanne à sphère électrique laiton
pdf - 447.3 ko
Data sheet LYVA 2 ACS electric brass ball valve
pdf - 446.9 ko
Details
Option certificate 3.1 | No |
---|---|
Shaft/stem matérial | Brass CW617N |
Face to Face (mm) | 57.0 |
Protection index (IP) | IP 67 |
Gasket | EPDM |
Body material | Brass CW617N |
PS (bar) | 10 |
Connections | BSP FF |
Operating time (s) | 6 |
TS max (°C) | 90 |
TS min (°C) | 0 |
Solenoid pilot valve ways | 2/2 |
Warranty period | 1 year |
CE | Excluded (Article 4. §3) |
Electrical connection | Cable 1500 mm |
