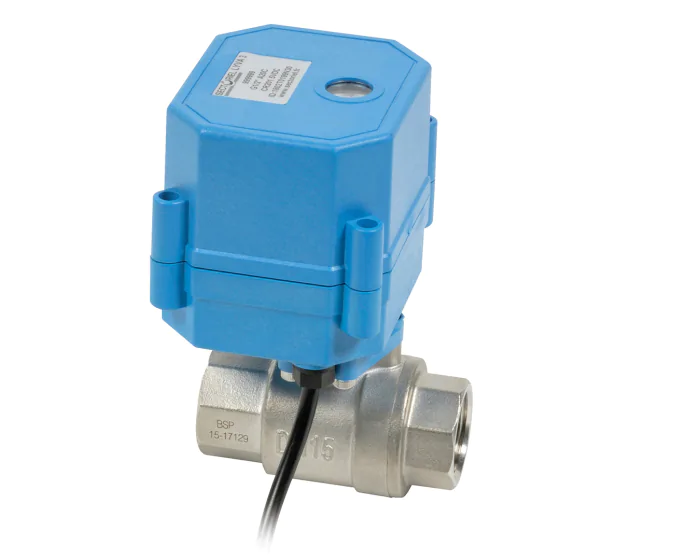

Compact electric actuated stainless steel ball valve Lyva 3
The LYVA 3 is a stainless steel ball valve with a 2-wire capacitor return electric actuator, NC or NO, with ACS (drinking water) approval.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Shaft/stem matérial | Stainless steel 316 |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 62.0 |
| Protection class (IP) | IP 67 |
| Gasket | EPDM |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 10 |
| Connections | BSP FF |
| Operating time (s) | 6 |
| TS max (°C) | 90 |
| TS min (°C) | 0 |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Electrical connection | Cable 1500 mm |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Compact electric actuated st. steel ball valve Lyva 3 1/4'' NC 24V AC/DC | 89321C0132 | €177.50 |
3 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 3/8'' NC 24V AC/DC | 89321C0133 | €177.50 |
10 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1/4'' NC 230V AC | 89321C0152 | €207.50 |
6 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 3/8'' NC 230V AC | 89321C0153 | €207.50 |
2 pcs available in stock
|
|
| Compact electric actuated st.steel ball valve Lyva 3 1/2'' NC 24V AC/DC | 89321C0232 | €152.32 |
52 pcs available in stock
|
|
| Compact electric actuated st.steel ball valve Lyva 3 3/4'' NC 24V AC/DC | 89321C0233 | €172.68 |
243 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1'' NC 24V AC/DC | 89321C0234 | €204.00 |
223 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1/2'' NC 230V AC | 89321C0252 | €164.82 |
6 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 3/4'' NC 230V AC | 89321C0253 | €202.32 |
65 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1'' NC 230V AC | 89321C0254 | €228.18 |
12 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1''1/4 NC 24V AC/DC | 89321C0332 | €488.90 |
6 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1''1/2 NC 24V AC/DC | 89321C0333 | €567.45 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 2'' NC 24V AC/DC | 89321C0334 | €688.10 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1''1/4 NC 230V AC | 89321C0352 | €530.95 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1''1/2 NC 230V AC | 89321C0353 | €583.10 |
5 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 2'' NC 230V AC | 89321C0354 | €734.68 |
2 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1/4'' NO 24V AC/DC | 89322C0132 | €148.75 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3/8'' NO 24V AC/DC | 89322C0133 | €148.75 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1/4'' NO 230V AC | 89322C0152 | €171.58 |
Currently not in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 3/8'' NO 230V AC | 89322C0153 | €171.58 |
Currently not in stock
|
|
| Compact electric actuated st.steel ball valve Lyva 3 1/2'' NO 24V AC/DC | 89322C0232 | €157.50 |
19 pcs available in stock
|
|
| Compact electric actuated st.steel ball valve Lyva 3 3/4'' NO 24V AC/DC | 89322C0233 | €169.20 |
55 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1'' NO 24V AC/DC | 89322C0234 | €185.72 |
3 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1/2'' NO 230V AC | 89322C0252 | €168.08 |
37 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 3/4'' NO 230V AC | 89322C0253 | €185.60 |
12 pcs available in stock
|
|
| Compact electric actuated st. steel ball valve Lyva 3 1'' NO 230V AC | 89322C0254 | €227.50 |
11 pcs available in stock
|
