CS galvanised hubbed threaded flange - Type 13/B1 - RF PN10/16 - 2158

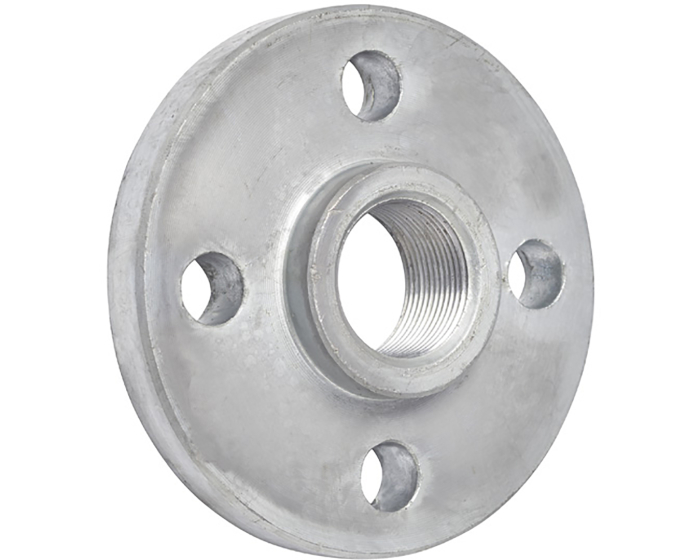

The threaded flange BSP forged steel 2158 Series type 13/B1 PN10/40 according to EN 1092-1 for transport of fluids or gases.
Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Construction standard | EN 1092-1 |
| Flange type | Weld-neck flange |
| Number of flange holes | 4 |
| Hole diameter L (mm) | 18.0 |
| Drilling circle diameter flange ØK (mm) | 125.0 |
| Bolt diameter | M16 |
| Flange facing type | Type B - Raised face |
| Gasket bearing diameter e (mm) | 102.0 |
| Flange thickness b (mm) | 18.0 |
| Flange type | Type 13 - Hubbed threaded flange |
| Type of coating | Hot-dip galvanised |
| Material | Forged steel P235GH |
| Application | Industry |
| Fluid | Oxygen / Argon / Nitrogen |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| TS max (°C) | 450 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| Warranty period | 3 years |
| Outside diameter (mm) | 165 |
