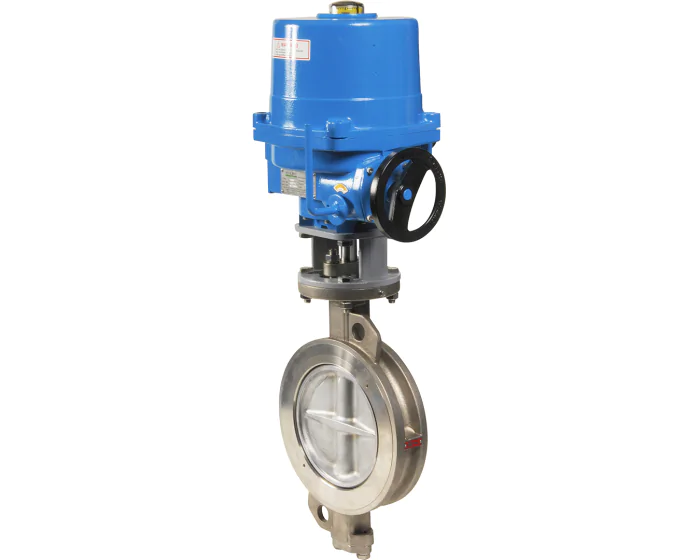

Double offset butterfly valve 1114 + NA electric actuator

Double offset disc valve PN25, stainless steel body 1.4408, PS: 25 bar - TS: -30/+210°C. NA electric actuator. Mounting between flanges PN25.
Choose your configuration
See all configurations
Réf.
CONF260970023110
(Indicative price) €3,552.13
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 20
Shaft/stem matérial Stainless steel 630 (17-4 PH)
Manual override By handwheel
Declutchable Yes
Duty service S2 duty service - 70%
Face to Face (mm) 43.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Disc material Stainless steel CF8M
Packing gland Graphite
PS (bar) 25
Power (W) 15
Connections Between flanges PN25
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type NA 06
Electric actuator series SA/NA series
Seats PTFE-Graphite
Operating time (s) 17.0
TS max (°C) 210
TS min (°C) -25
Butterfly valve design Double offset
Wafer/lug Wafer
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe Yes

Configurations

Product Reference Price Stock
Double offset butterfly valve 1114 DN50 + NA06 230V AC 260970023110 €3,552.12
10 pcs available in stock
Double offset butterfly valve 1114 DN65 + NA06 230V AC 260971023110 €3,681.55
10 pcs available in stock
Double offset butterfly valve 1114 DN80 + NA06 230V AC 260972023110 €3,817.32
10 pcs available in stock
Double offset butterfly valve 1114 DN100 + NA09 230V AC 260973023120 €4,907.42
22 pcs available in stock
Double offset butterfly valve 1114 DN125 + NA15 230V AC 260974023130 €5,657.62
8 pcs available in stock
Double offset butterfly valve 1114 DN150 + NA28 230V AC 260975023150 €6,383.08
11 pcs available in stock
Double offset butterfly valve 1114 DN200 + NA28 230V AC 260976023150 €8,726.42
11 pcs available in stock
Double offset butterfly valve 1114 DN200 + NA28 3-400V 260976023153 €8,726.42
Currently not in stock
Double offset butterfly valve 1114 DN250 + NA38 230V AC 260977023160 €11,016.68
2 pcs available in stock
Double offset butterfly valve 1114 DN300 + NA38 230V AC 260978023160 €13,992.88
2 pcs available in stock
