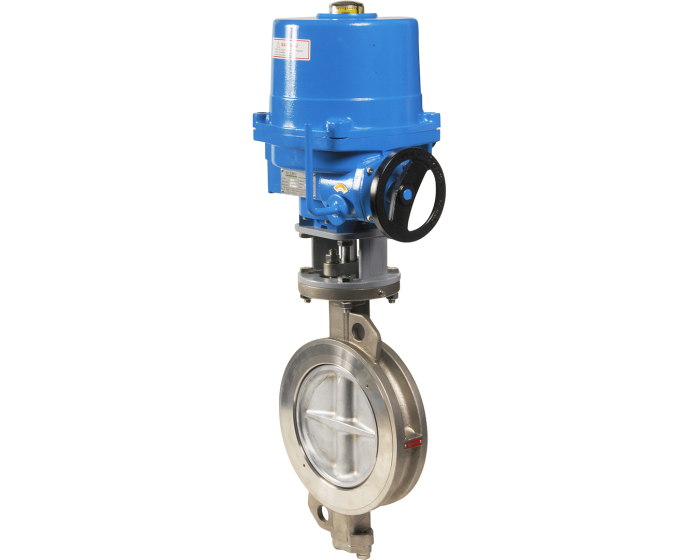

Double offset butterfly valve 1114 + NA-X electric actuator ATEX
Double offset disc valve PN25, stainless steel body 1.4408, PS: 25 bar - TS: -30/+210°C. ATEX NAX electric actuator. Mounting between flanges PN25.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 20 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 43.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | EEx d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 25 |
| Power (W) | 15 |
| Connections | Between flanges PN25 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 06 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | WAFER |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | By gland packing ATEX |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Double offset butterfly valve 1114 DN50 + NA06X ATEX 230V AC | 260970023320 | €3,844.50 |
5 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN65 + NA06X ATEX 230V AC | 260971023320 | €3,904.50 |
5 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN80 + NA06X ATEX 230V AC | 260972023320 | €3,893.50 |
5 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN100 + NA09X ATEX 230V AC | 260973023330 | €4,777.72 |
6 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN125 + NA15X ATEX 230V AC | 260974023340 | €6,101.18 |
7 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN150 + NA28X ATEX 230V AC | 260975023360 | €6,815.55 |
2 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN200 + NA28X 230V AC | 260976023360 | €8,437.32 |
2 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN250 + NA38X 230V AC | 260977023370 | €12,480.60 |
1 pcs available in stock
|
|
| Double offset butterfly valve 1114 DN300 + NA38X 230V AC | 260978023370 | €13,148.82 |
1 pcs available in stock
|
