Details
| Option certificate 3.1 | Yes |
|---|---|
| ATEX atmosphere | IIB |
| Manual override | By handwheel |
| Declutchable | Yes |
| Duty service | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 15 |
| Connections | Between flanges #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 06 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| Electrical connection | By gland packing ATEX |
| Fire safe | Yes |

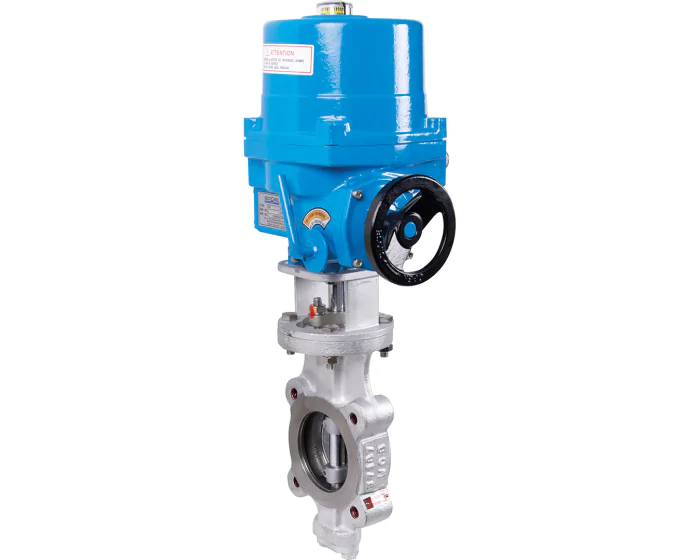

Double offset butterfly valve 1117 ANSI150 + NA-X electric actuator
The 1117 double offset butterfly valve has a WCB steel body, a CF8M stainless steel disc and a PTFE/graphite seat. ATEX NAX electric actuation. PS: 20bar, TS: 210°C. Flange connection LUG ANSI 150, fire safe ISO 10497.
