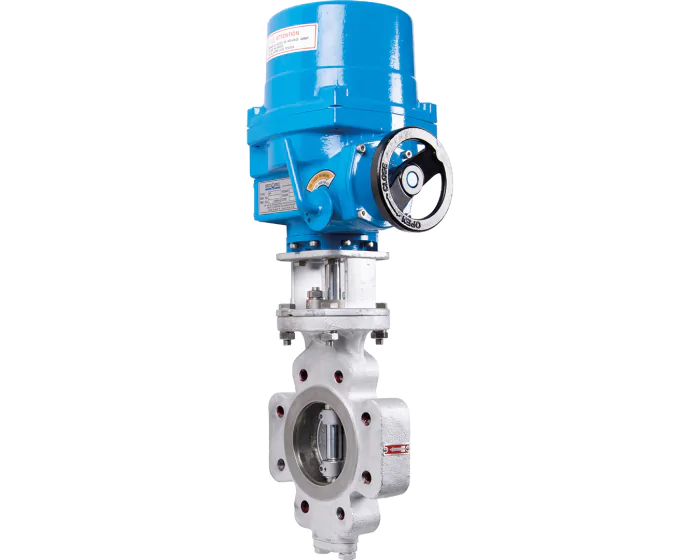

Double offset butterfly valve 1117 + NA-X ATEX electric actuator
The 1117 double offset butterfly valve has a WCB steel body, a CF8M stainless steel disc and a PTFE/graphite seat. ATEX NAX electric actuation. PS: 16bar, TS: 210°C. Between flanges LUG PN16. Fire safety ISO 10497.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| ATEX atmosphere | IIB |
| Manual override | By handwheel |
| Torque (Nm) | 106.4 |
| Declutchable | Yes |
| Duty service | S2 duty service - 70% |
| Protection class (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx d |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 15 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 06 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Graphite |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| Electrical connection | By gland packing ATEX |
| Fire safe | Yes |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Carbon steel double offset butterfly valve 1117 DN50 +NA06X ATEX 230V | 260850023320 | €3,443.90 |
5 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN65 +NA06X ATEX 230V | 260851023320 | €3,448.18 |
5 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN80 +NA06X ATEX 230V | 260852023320 | €4,306.90 |
5 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN100 +NA09X ATEX 230V | 260853023330 | €4,534.90 |
4 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN125 +NA15X ATEX 230V | 260854023340 | €4,915.40 |
8 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN150 +NA28X ATEX 230V | 260855023360 | €5,609.05 |
2 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN150 +NA28X ATEX 230V | 260856023360 | €8,667.32 |
2 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN250 +NA38X ATEX 230V | 260857023370 | €10,025.28 |
1 pcs available in stock
|
|
| Carbon steel double offset butterfly valve 1117 DN300 +NA38X ATEX 230V | 260858023370 | €11,082.78 |
1 pcs available in stock
|
