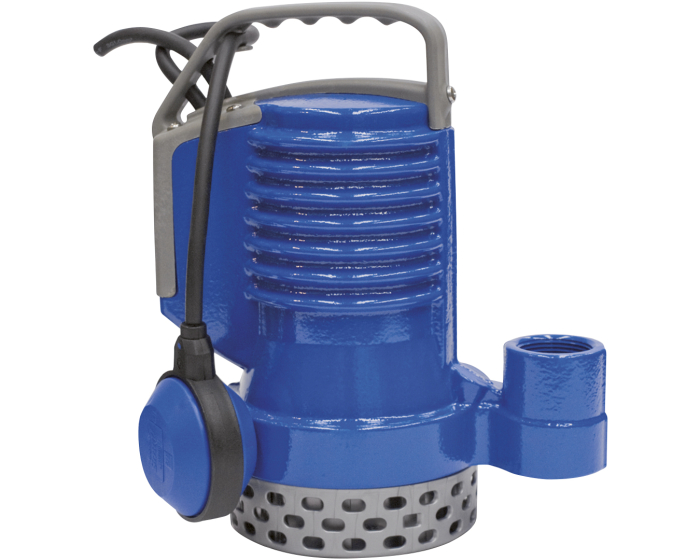

Drainage pump DR Blue 40/50/75/100
Single-phase automatic pump. Designed to evacuate rainwater, drains, seepage or flooding water. Its protective screen against gravel allows a grain size of 7 mm. Double mechanical seal in oil bath.
Documentation
Details
| Electrical design | Single-phase with float |
|---|---|
| Packaging dimensions L x W x H (mm) | 238x196x360 |
| Discharge orientation | Vertical outlet |
| Automatic pump | Yes |
| Weight with packaging (kg) | 12.1 |
| Power output P2 (Kw) | 0.37 |
| Pump series or range | DR Blue |
| Maximum temperature of discharged liquid (°C) | 40 |
| Supply voltage | 1 x 230V |
| Impeller type | Vortex |
| Motor speed | 2900 rpm |
| Cable length (m) | 10 |
| Rated current (A) | 2.3 |
