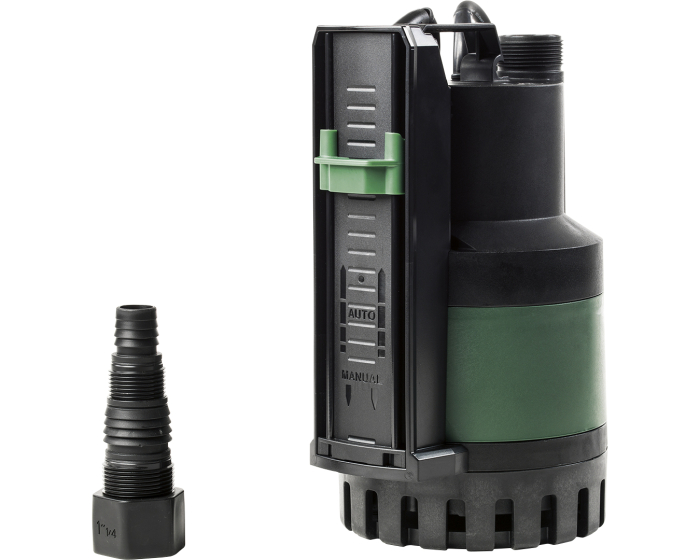

Drainage pump Nova-up 300/600 MAE
Submersible pump for rainwater, drains or seepage with an integrated float for use in narrow manholes. This pump is also used for pool decompression wells.
Documentation
Documentation commerciale
pdf - 919.1 ko
Declaration of conformity
pdf - 940 ko
Notice de mise en service NOVA UP MAE
pdf - 3.7 mo
Details
Electrical design | Automatic pump |
---|---|
Packaging dimensions L x W x H (mm) | 272x224x334 |
Discharge orientation | Vertical outlet |
Automatic pump | Yes |
Weight with packaging (kg) | 6.0 |
Power output P2 (Kw) | 0.55 |
Pump series or range | Nova |
Maximum temperature of discharged liquid (°C) | 35 |
Supply voltage | 1 x 230V |
Motor speed | 2900 rpm |
Cable length (m) | 10 |
Rated current (A) | 1.5 |
Torque (Nm) | 106.4 |
DN | 15 |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Drainage pump Nova-up 300 MAE | 131123 | €519.75 |
Currently not in stock
|
|
Drainage pump Nova-up 600 MAE | 131133 | €752.50 |
60 pcs available in stock
|
