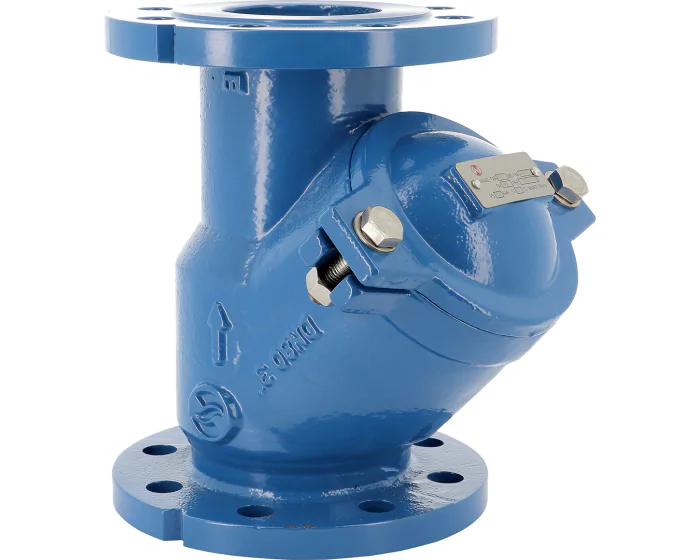

Ductile iron ball check valve 332 RF PN10 DIN F6
Syveco offers the ball check valve, series 332, in cast iron GJS-400-15, with inspection cover, epoxy paint, stainless steel bolts and nuts, fitting PN10/16, for water networks
Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| EN face-to-face standard | EN 558 Series 48 |
| DIN face-to-face standard | DIN 3202 F6 |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | NBR coated aluminium |
| Application | Water supply and distribution network |
| Torque (Nm) | 106.4 |
| Diameter of passage | 51.00 |
| Face to Face (mm) | 200.0 |
| Fluid | Cold water |
| Gasket | NBR |
| Kv (m³/h) | 81.0 |
| Body material | Ductile iron |
| PS (bar) | 10 |
| Connections | Flanged PN10/16 |
| Seats | Cast iron |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Obturator type | Ball |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN40 | 332040 | €162.50 |
9 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN50 | 332050 | €190.00 |
101 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN65 | 332065 | €290.00 |
79 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN80 | 332080 | €300.40 |
34 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN100 | 332100 | €407.00 |
40 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN125 | 332125 | €797.50 |
20 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN150 | 332150 | €914.95 |
37 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN200 | 332200 | €1,518.10 |
30 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN250 | 332250 | €3,238.18 |
9 pcs available in stock
|
|
| Ductile iron ball check valve 332 RF PN10 DIN F6 DN300 | 332300 | €4,359.20 |
13 pcs available in stock
|
