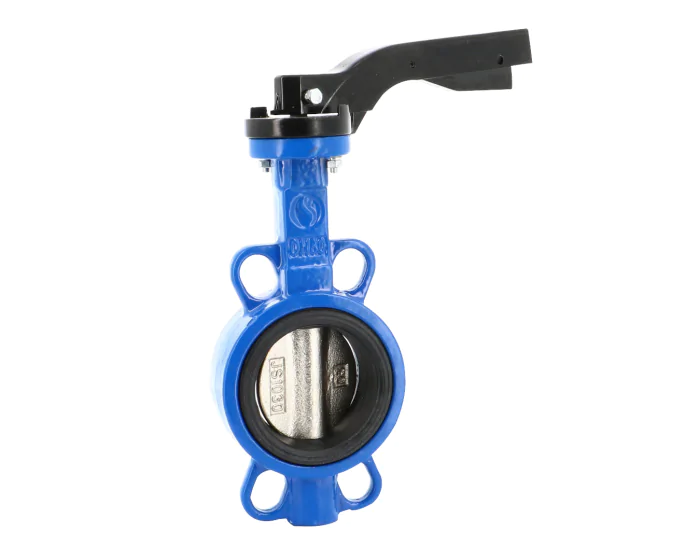

Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 and EPDM seat

The 1125 wafer-style butterfly valve, with ductile iron body, ductile iron disc and EPDM seat, ISO 5211 plate, double PTFE tightness, for cold and hot water.
Choose your configuration
See all configurations
Réf.
CONF1125050
(Indicative price) €72.50
In stock Availability according to configuration
Details

Concentric cast iron butterfly valves

Our range of concentric cast iron butterfly valves contain both wafer and lug types that can be used between flanges PN10/16, ANSI 150 up to DN600, and JIS 10K up to DN300.

The body of our butterfly valves is made from epoxy-coated GG25 cast iron (GGG40 above DN600), and our soft seats and seals are made with vulcanized EPDM or vulcanized NBR. The vulcanization of the seat increases mechanical strength, which helps avoid creeping and wrenching. EPDM can withstand temperatures from – 10 °C up to + 110°C (with a transient peak at + 130°C), whereas our vulcanized NBR seats can withstand + 80°C. Our valves can tolerate pressures of 16 bar up to DN300, and 10 bar above. Our valves are fitted with nickel-plated ductile iron or stainless steel discs that are held in place thanks to shank grooves, which help avoid mechanical slack during use. The one-piece axis is kept airtight by two levels of PTFE and NBR seals. The ISO 5211 mounting pad allows easy mounting of pneumatic or electric actuators, or manual gearboxes. These valves can be used with a wide variety of fluids, including hot and cold water, demineralized water, alcohol, lime milk, mercury, alkaline solutions, sodium hydroxide… They are also suitable for gas such as air, nitrogen, etc.

Details
Details

In categories : Concentric

Configurations
Product Reference Price Stock
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 disc/EPDM seat lever DN40
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 disc/EPDM seat lever DN50
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 disc/EPDM seat lever DN65
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 disc/EPDM seat lever DN80
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15 disc/EPDM seat lever DN100
Product
Cast iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN100
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat lever DN125
Product
Cast iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN125
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat lever DN150
Product
Cast iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN150
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat lever DN200
Product
Cast iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN200
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat lever DN250
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN250
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat lever DN300
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN300
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN350
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN400
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN450
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN500
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN600
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN700
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN800
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN900
Product
Ductile iron butterfly valve 1125 wafer EN-GJS-400-15/EPDM seat gearbox DN1000

25 Item(s)
