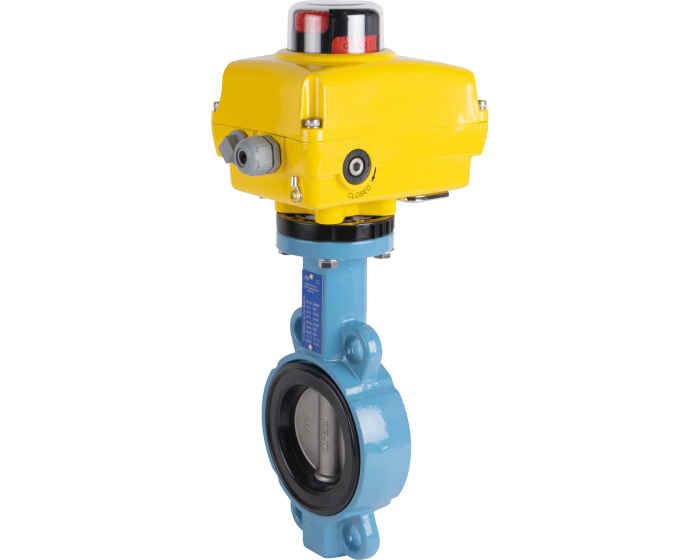

Ductile iron butterfly valve 1150LT10 + SA/NA electric actuator

The TTV 1150 ACS butterfly valve has a ductile iron body, a stainless steel or ductile iron disc and an EPDM seat. It is actuated by an SA/NA electric actuator. ACS approval. PS : 10 bar - TS : -10 / +110°C.
Choose your configuration
See all configurations
Réf.
CONF260303023010L10
(Indicative price) €1,234.58
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 420
Manual override By key
Torque (Nm) 106.4
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 33.0
Protection class (IP) IP 67
Torque limiter No
Recommended location Outdoor
Seat EPDM
Body material Ductile iron
Number of ways 2
Disc material Stainless steel CF8M
PS (bar) 10
Power (W) 6
Connections Between flanges PN10/16 #150
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Operating time (s) 17.0
TS max (°C) 110
TS min (°C) -15
Butterfly valve design Concentric
Wafer/lug WAFER
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe No

Configurations

Product Reference Price Stock
Ductile iron butterfly valve 1150LT10 DN40 + SA05 260303023010L10 €1,240.00
17 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN50 + SA05 260304023010L10 €1,234.58
37 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN65 + SA05 260305023010L10 €1,270.08
25 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN80 + SA05 260306023010L10 €1,292.70
25 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN100 + SA05 260307023010L10 €1,328.70
28 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN125 + NA09 230V AC 260308023120L10 €2,511.42
8 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN150 + NA15 230V AC 260309023130L10 €3,028.32
4 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN200 + NA15 230V AC 260310023130L10 €3,161.38
2 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN250 + NA28 230V AC 260311023150L10 €3,747.30
6 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN300 + NA38 230V AC 260312023160L10 €4,589.92
1 pcs available in stock
Ductile iron butterfly valve 1150LT10 DN350 + NA60 230V AC 260313023180L10 €5,954.30
1 pcs available in stock
