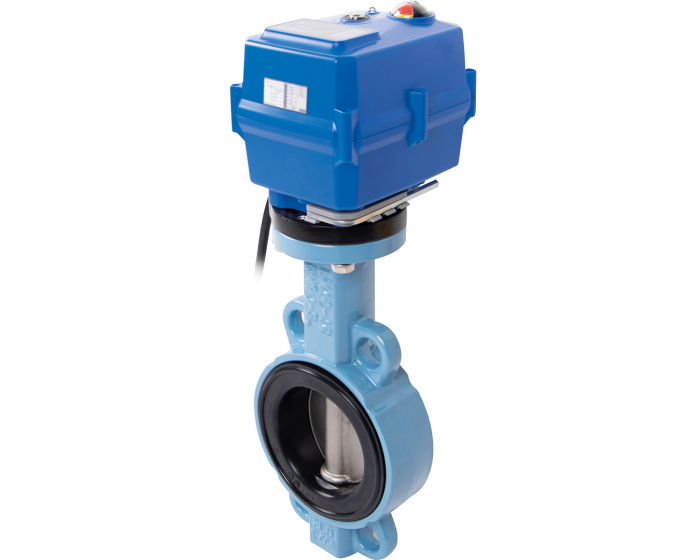

Ductile iron butterfly valve 1150LT10 + TCR electric actuator
The TTV 1150 butterfly valve has a ductile iron body, a stainless steel or ductile iron disc and an EPDM seat. It is actuated by a TCR-N electric actuator. ACS approval. PS: 10 bar - TS: -10 / +110°C.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Torque (Nm) | 106.4 |
| Declutchable | No |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Torque limiter | No |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | WAFER |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | Per gland packing + 1.5 m cable |
| Fire safe | No |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Ductile iron butterfly valve 1150LT10 DN40 + TCR-05N 230V AC | 260303024310L10 | €815.75 |
12 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN40 + TCR05N 24V AC/DC | 260303024311L10 | €815.75 |
12 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN50 + TCR05N 230V AC | 260304024310L10 | €820.02 |
29 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN50 + TCR05N 24V AC/CC | 260304024311L10 | €820.02 |
16 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN65 + TCR05N 230V AC | 260305024310L10 | €842.35 |
27 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN65 + TCR05N 24V AC/CC | 260305024311L10 | €842.35 |
16 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN80 + TCR05N 230V AC | 260306024310L10 | €862.85 |
39 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN80 + TCR05N 24V AC/DC | 260306024311L10 | €862.85 |
16 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN100 + TCR05N 230V AC | 260307024310L10 | €894.12 |
23 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN100 + TCR05N 24V AC | 260307024311L10 | €894.12 |
16 pcs available in stock
|
|
| Ductile iron butterfly valve 1150 DN250 + TCR40N 230V AC | 260309024610L10 | €1,387.02 |
1 pcs available in stock
|
|
| Ductile iron butterfly valve 1150LT10 DN200 + TCR20N 230V AC | 260310024700L10 | €2,282.40 |
3 pcs available in stock
|
|
| Ductile iron butterfly valve 1150 DN250 + TCR40N 230V AC | 260311024720L10 | €3,010.80 |
4 pcs available in stock
|
