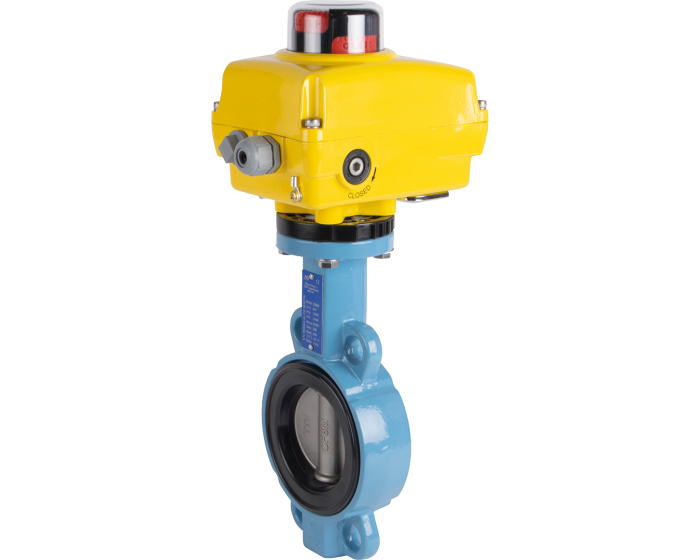

Ductile iron butterfly valve 1151 + SA/NA electric actuator

The TTV 1151 butterfly valve has a ductile iron body, a stainless steel disc and an NBR seat. It is actuated by an SA/NA electric actuator.
Choose your configuration
See all configurations
Réf.
CONF260440023010
(Indicative price) €1,258.72
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Shaft/stem matérial Stainless steel 304
Manual override By key
Declutchable No
Duty service S4 duty service - 50%
Face to Face (mm) 33.0
Protection index (IP) IP 67
Torque limiter No
Recommended location Outdoor
Seat NBR
Body material Ductile iron
Number of ways 2
Disc material Stainless steel CF8M
PS (bar) 16
Power (W) 6
Connections Between flanges PN10/16 #150
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 05
Electric actuator series SA/NA series
Operating time (s) 17.0
TS max (°C) 80
TS min (°C) -10
Butterfly valve design Concentric
Wafer/lug Wafer
Warranty period 1 year
CE Risk category III
Electrical connection Per gland packing M20 x 1.5
Fire safe No

Configurations

Product Reference Price Stock
Produit
Ductile iron butterfly valve 1151 DN32-40 + SA05 230V AC
Produit
Ductile iron butterfly valve 1151 DN50 + SA05 230V AC
Produit
Ductile iron butterfly valve 1151 DN65 + SA05 230V AC
Produit
Ductile iron butterfly valve 1151 DN80 + SA05 230V AC
Produit
Ductile iron butterfly valve 1151 DN100 + SA05 230V AC
Produit
Ductile iron butterfly valve 1151 DN125 + NA09 230V AC
Produit
Ductile iron butterfly valve 1151 DN150 + NA15 230V AC
Produit
Ductile iron butterfly valve 1151 DN200 + NA15 230V AC
Produit
Ductile iron butterfly valve 1151 DN250 + NA28 230V AC
Produit
Ductile iron butterfly valve 1151 DN300 + NA38 230V AC

10 Item(s)
